843 N Spring Street

Show hide Project Info

Location

Los Angeles, CA

Scale

145,000 sf

Program

Office, retail, garden courtyard, amenity deck, below grade parking

Completion

2022

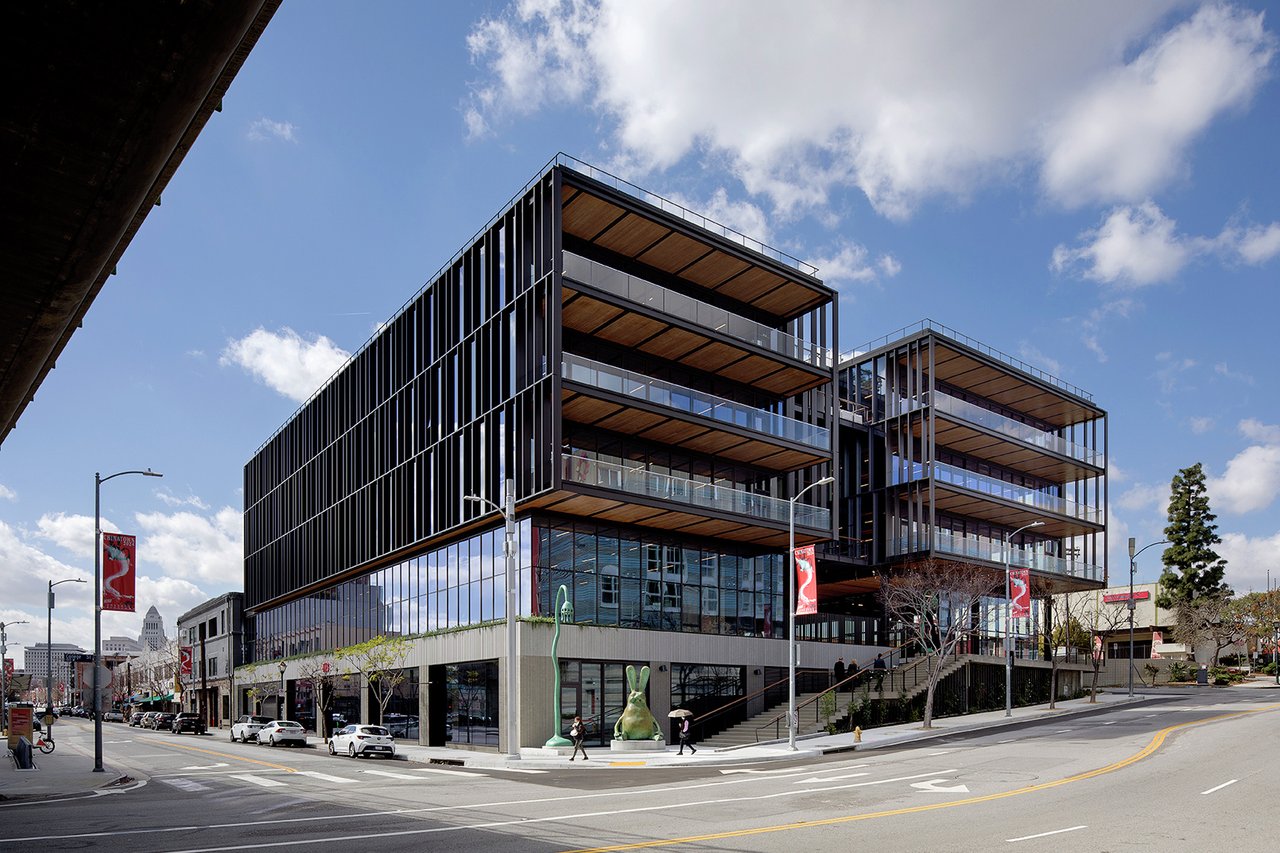

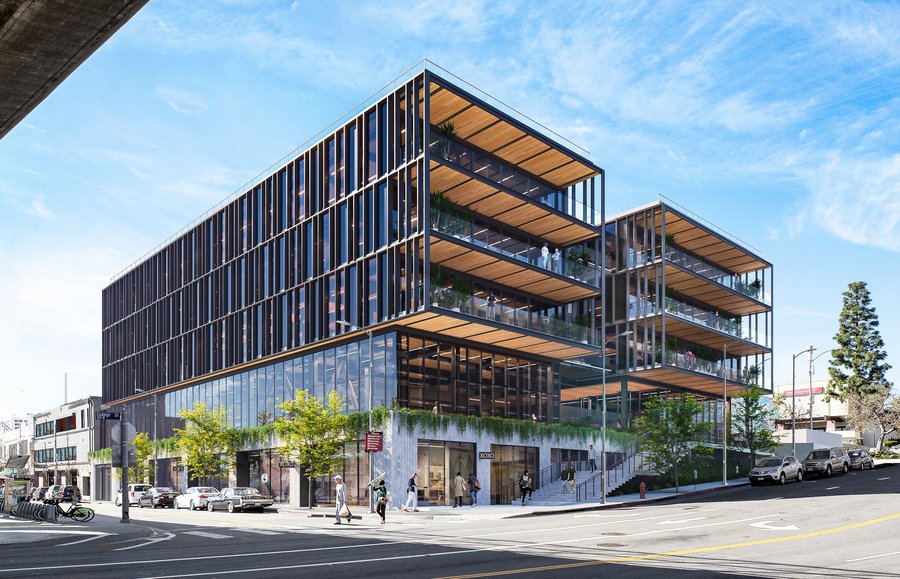

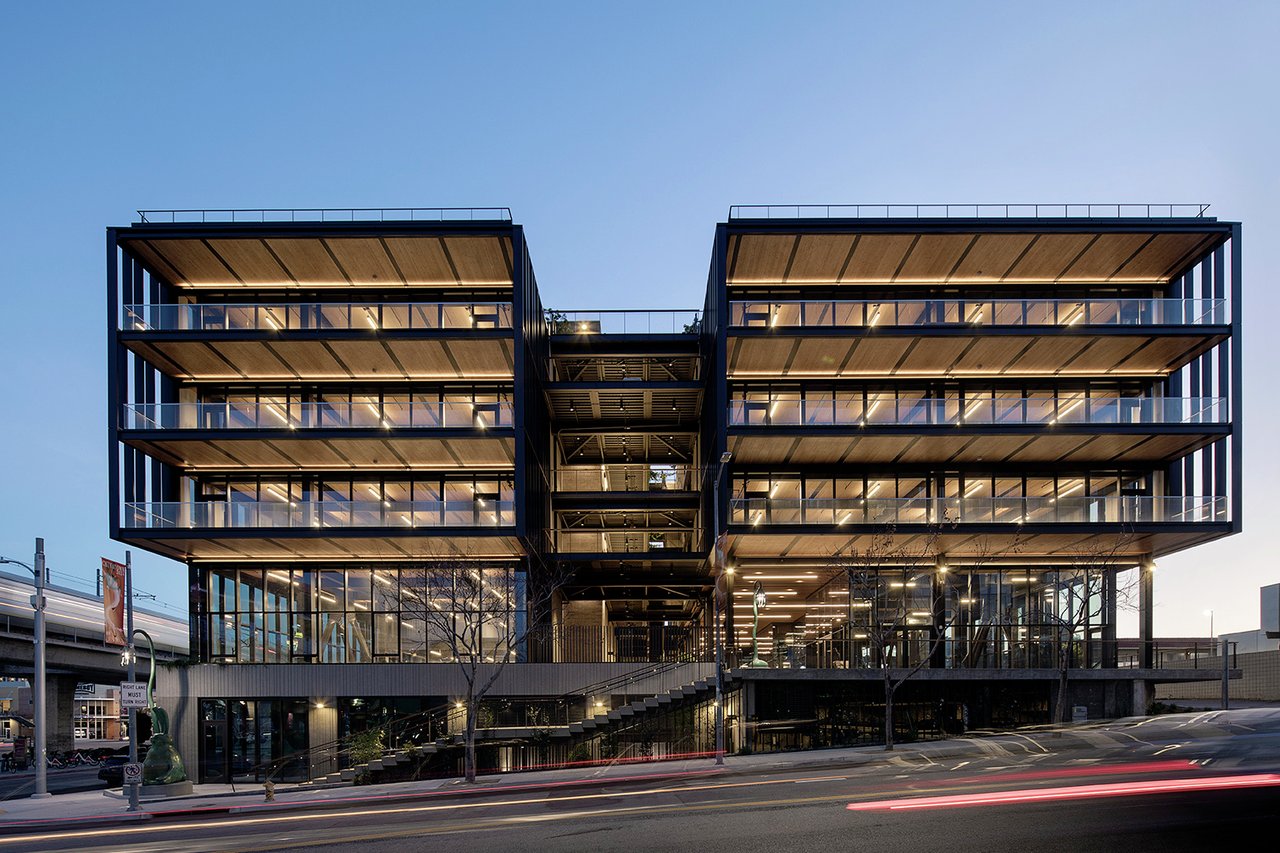

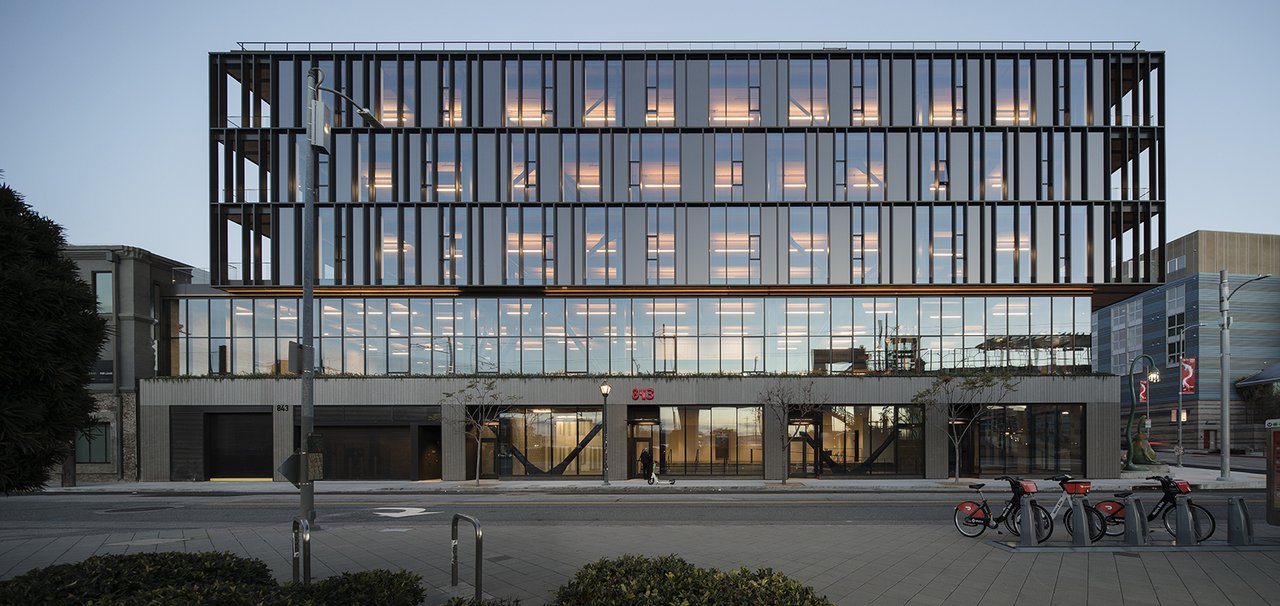

This 145,000 sf new creative office building is located on a steeply-sloped site and prominent transit hub in the heart of downtown Los Angeles. The building creates a unique office environment for next-generation creative tenants, while offering the community a public landscape experience in a high-density urban setting.

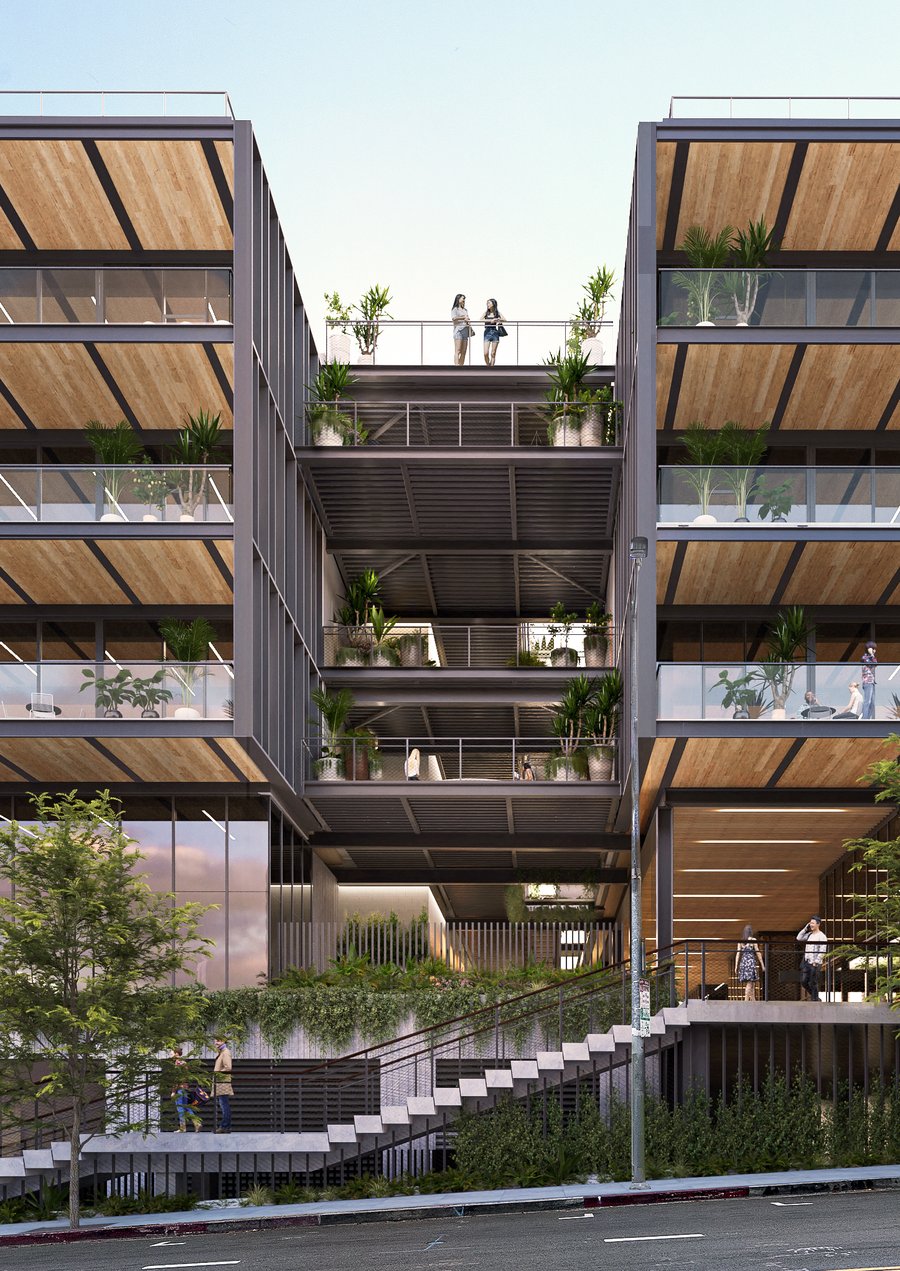

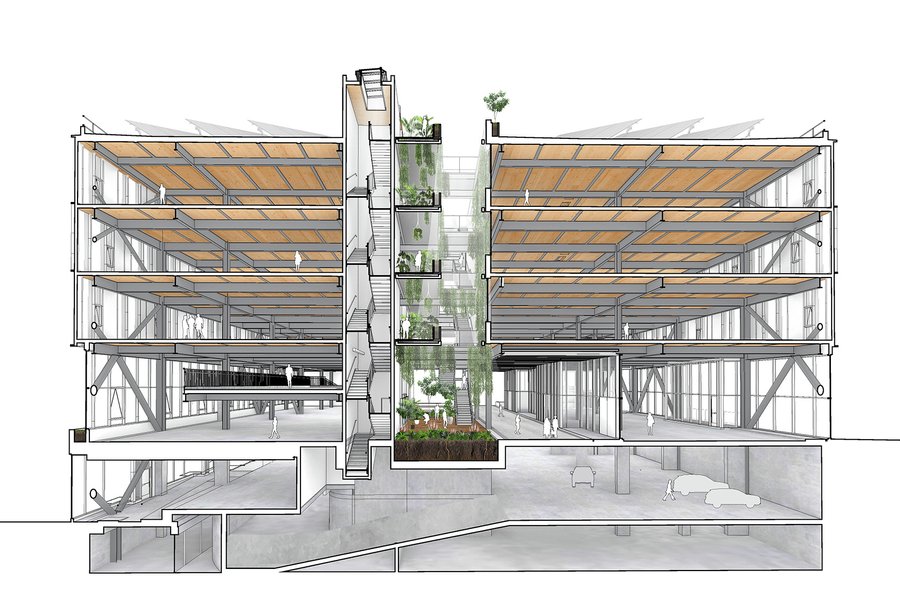

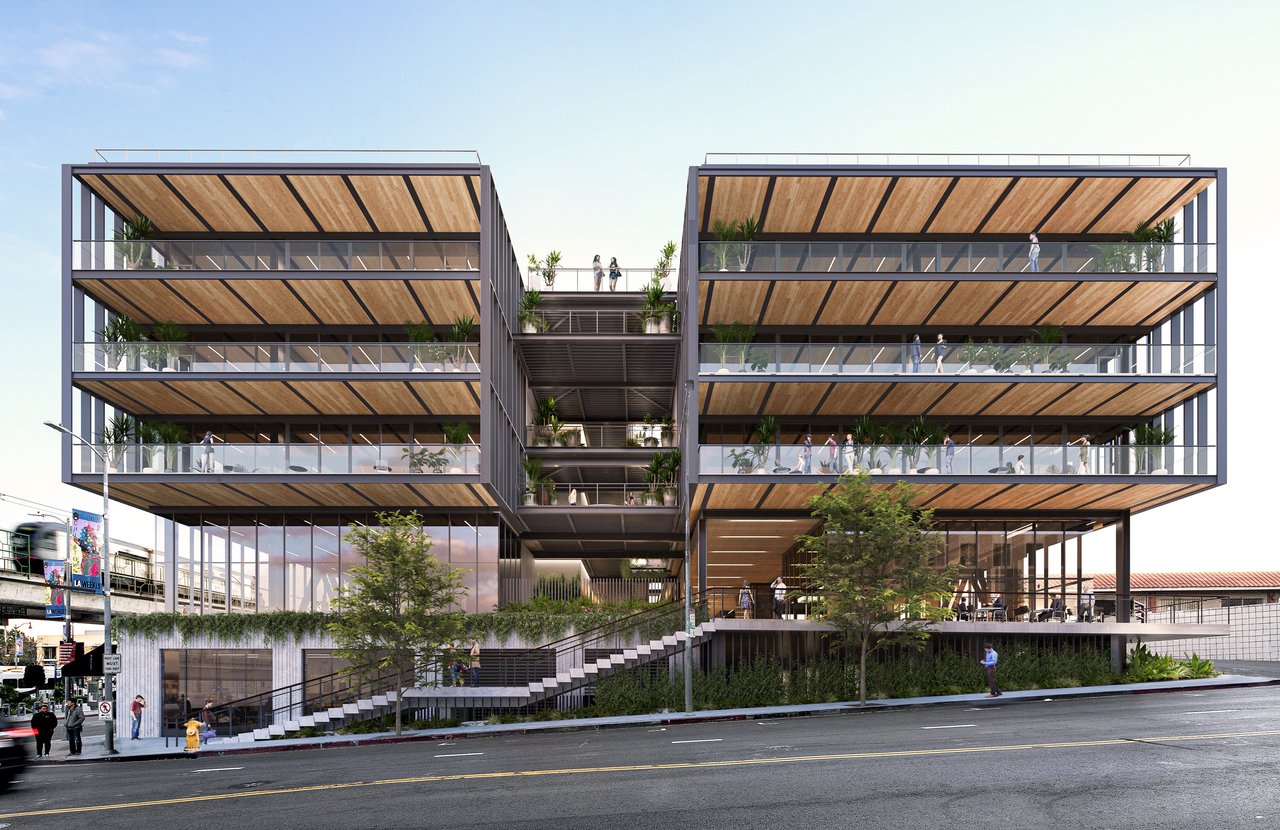

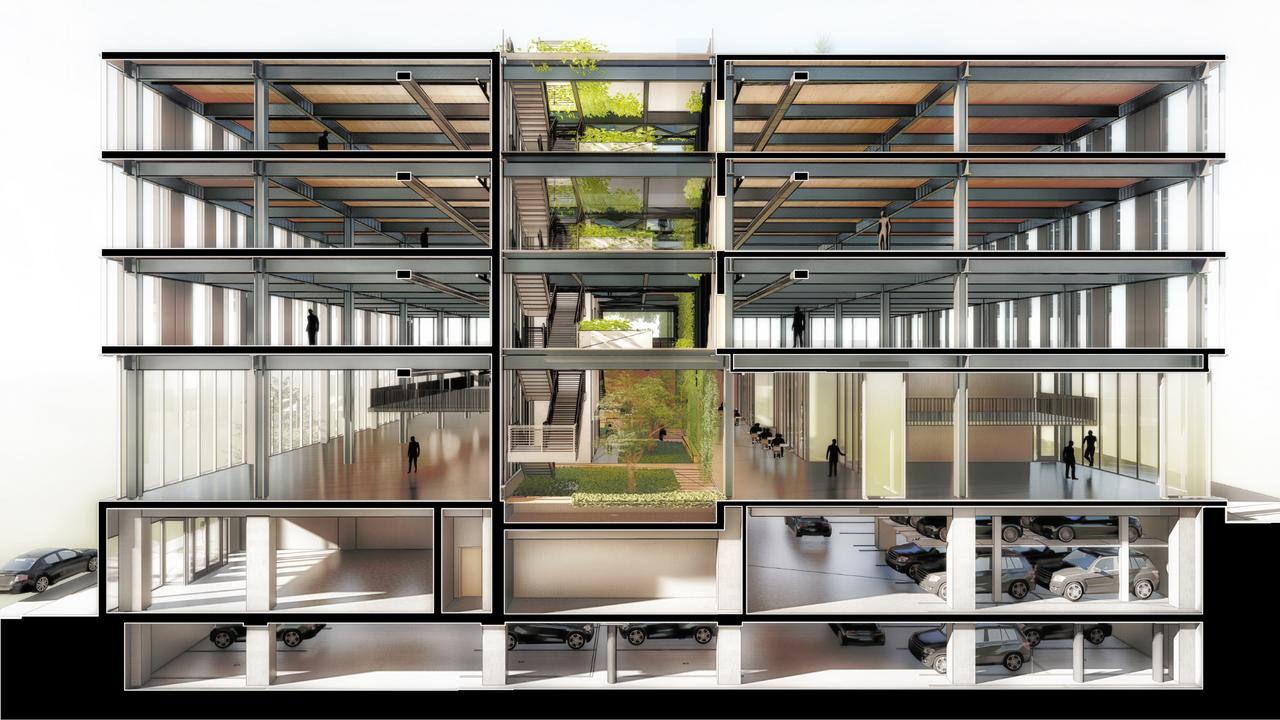

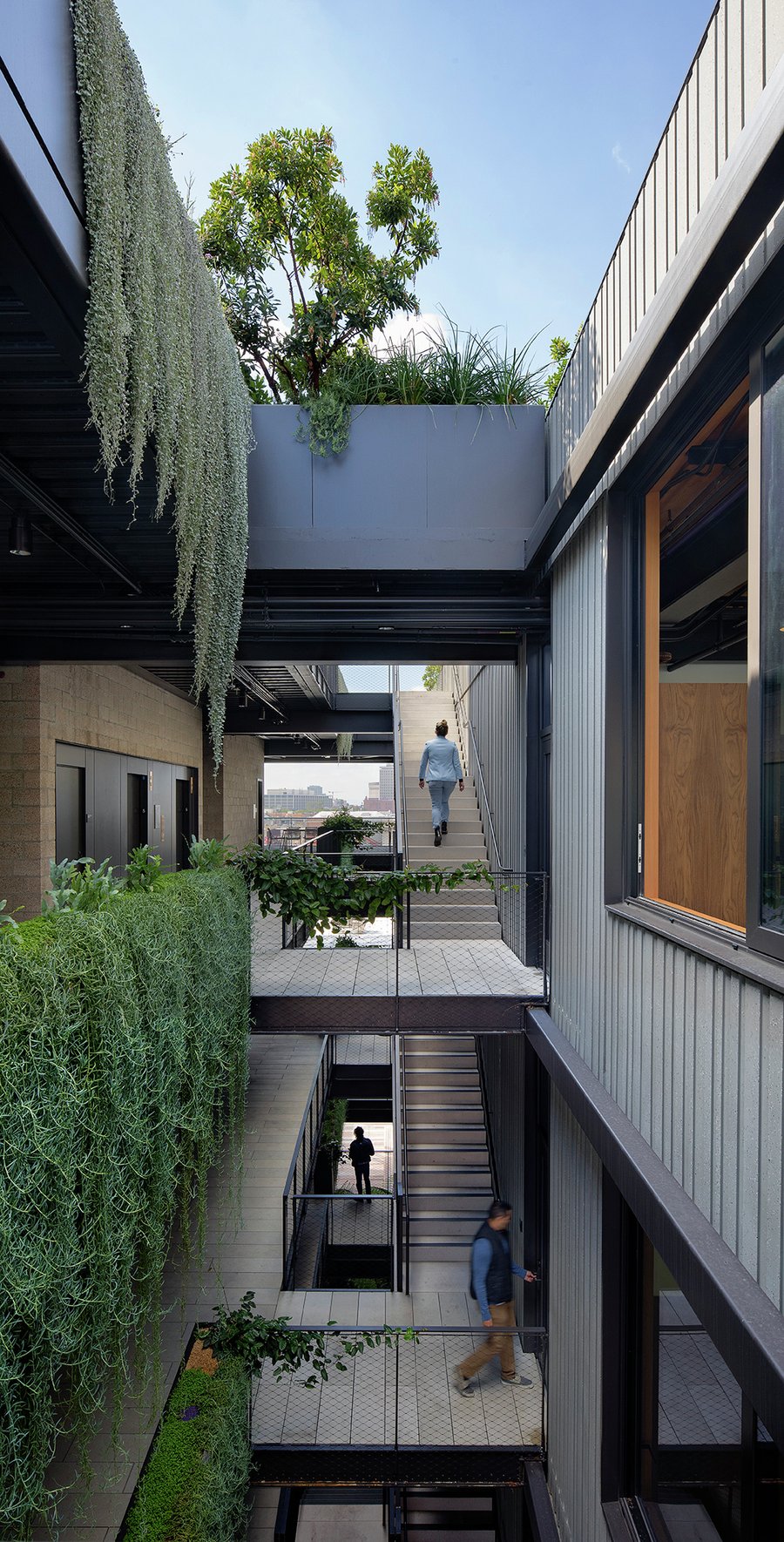

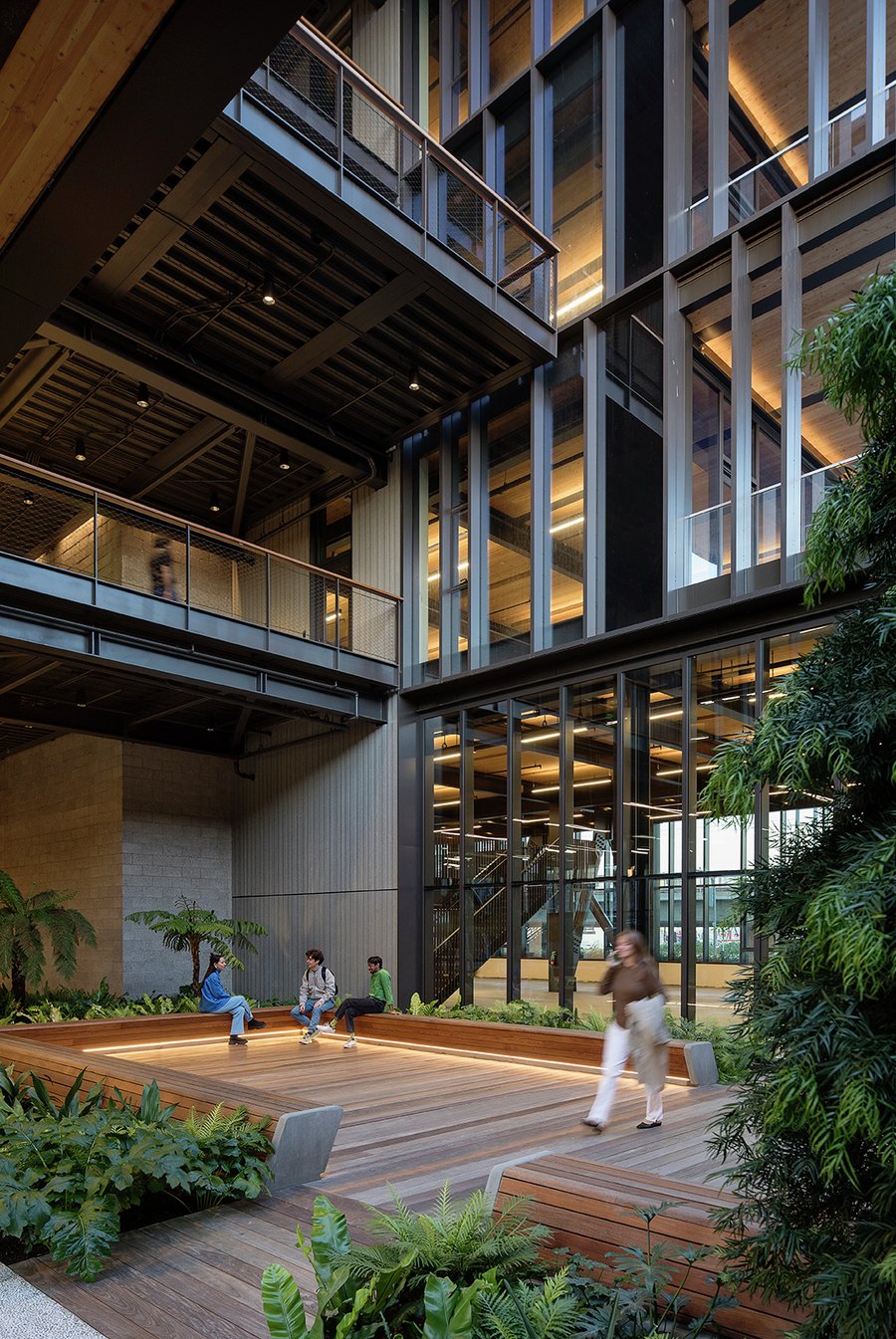

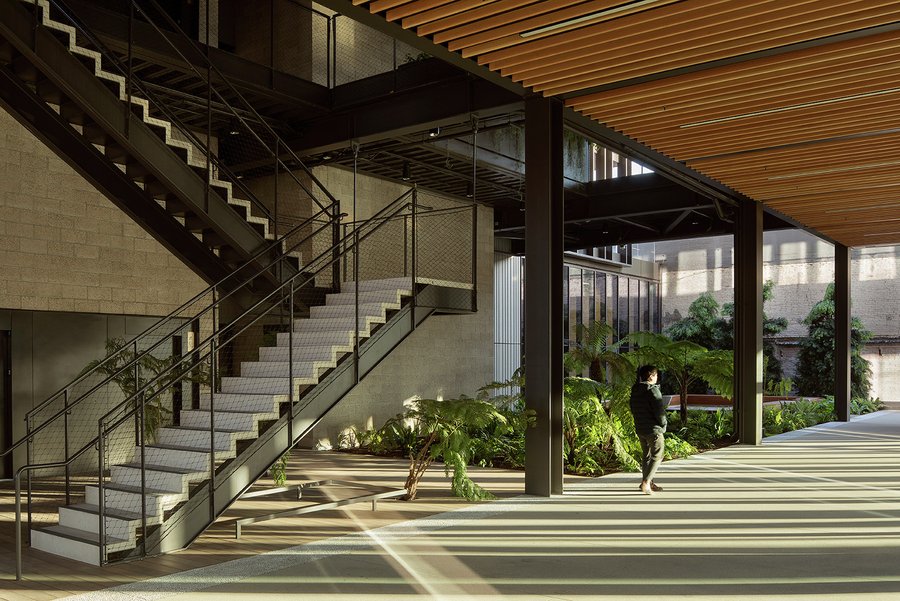

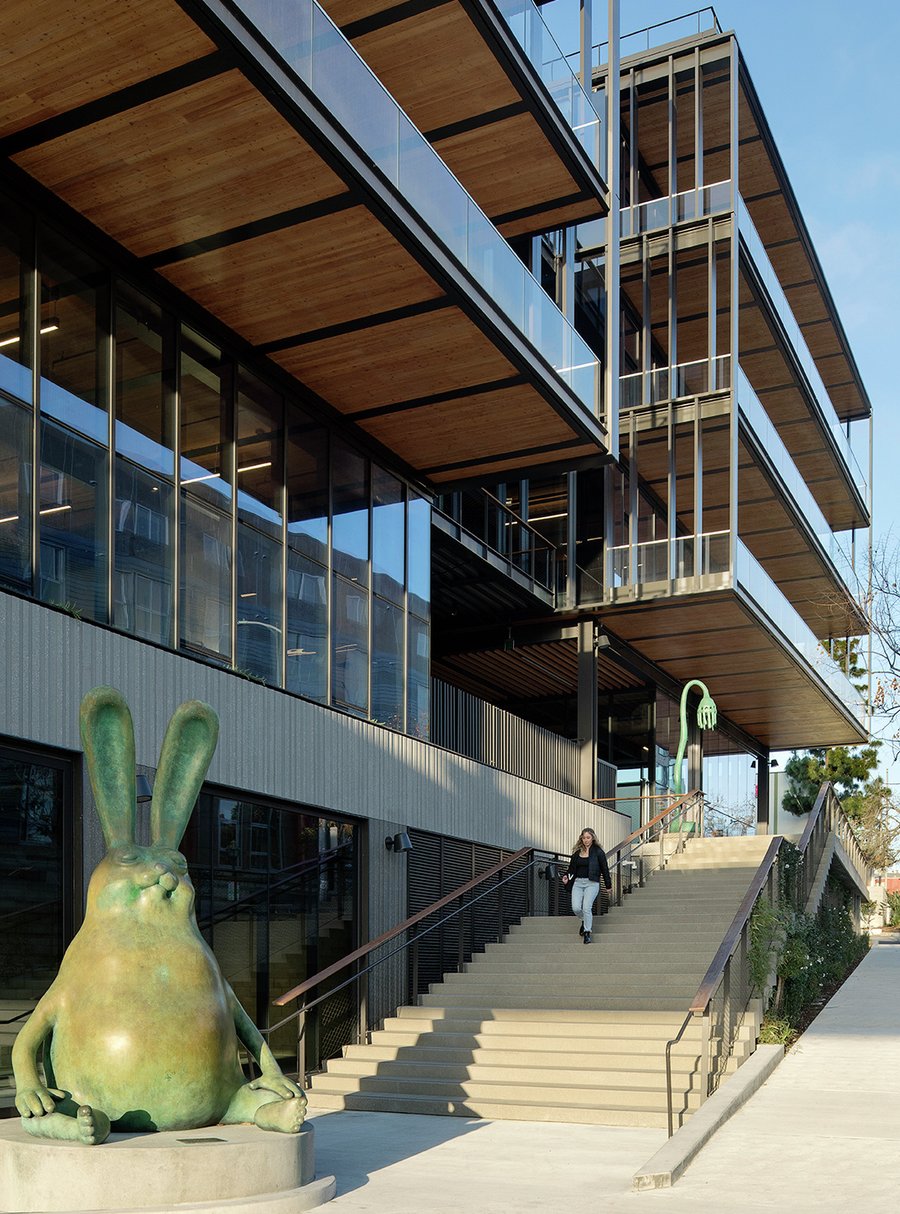

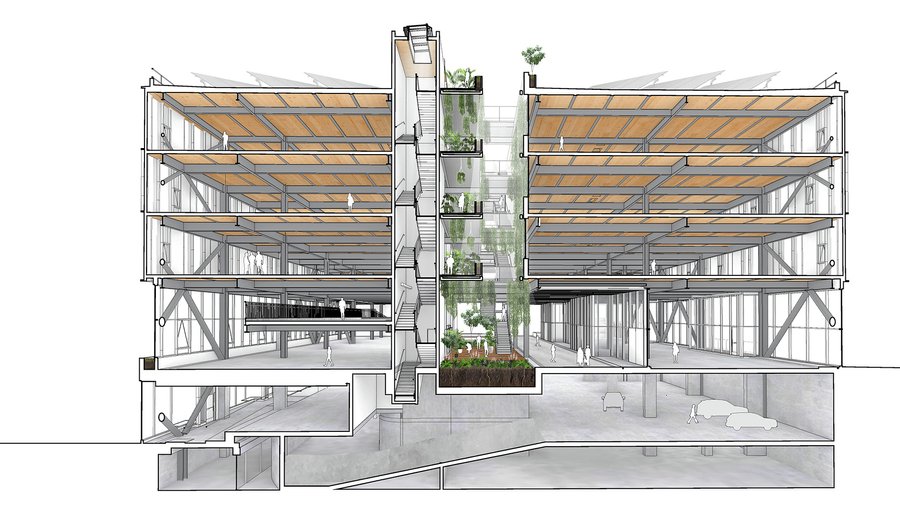

A welcoming entry draws visitors upward, with a prominent central stair that connects Spring Street up to New High Street. The design splits the building into two sections, with a tiered vertical garden courtyard between the office wings to provide sectional variety that breaks down the building’s scale.

Ct7 02 corner wg edit 1280 212x72x3501x2333 q85

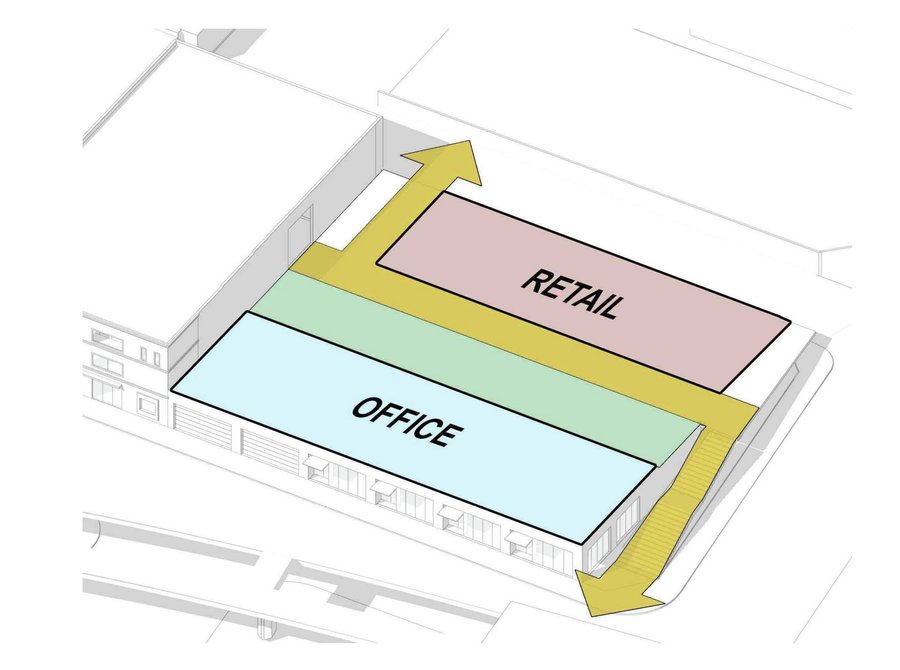

The street level and second floor retail concept takes inspiration from the many plazas and alleyways of Chinatown that turn the spaces between buildings into passageways to more secluded courtyards and gathering spaces. The arrival sequence from the main stairs on Spring Street invites pedestrians up as if ascending a walled garden; and the passageway from New High Street draws foot traffic into the plaza level to discover the smaller retail spaces that match the scale of many of Chinatown’s mainstay local businesses.

Urban access diagram 900 100x40x2207x1153 q85
Ct7 01 aerial med resolution 900 0x0x4000x2588 q85

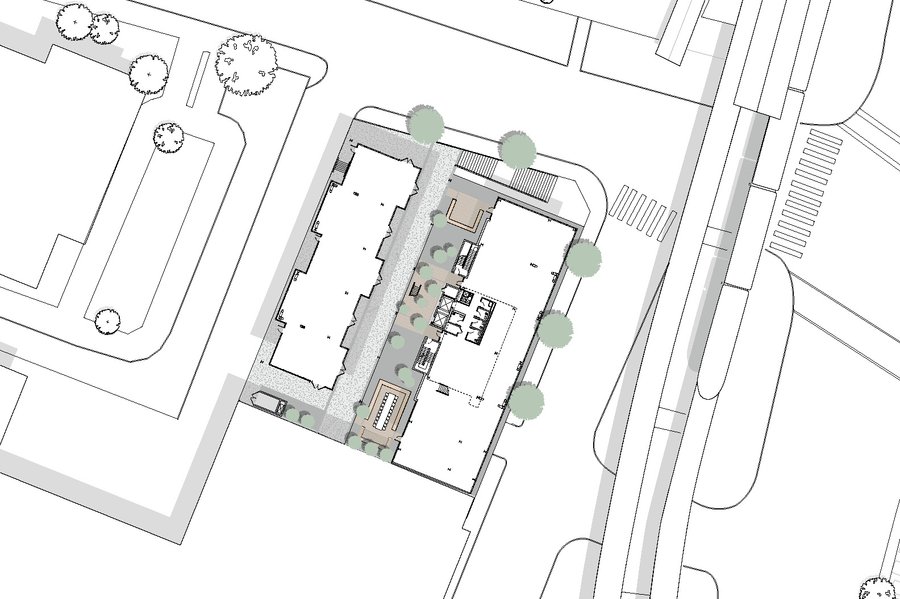

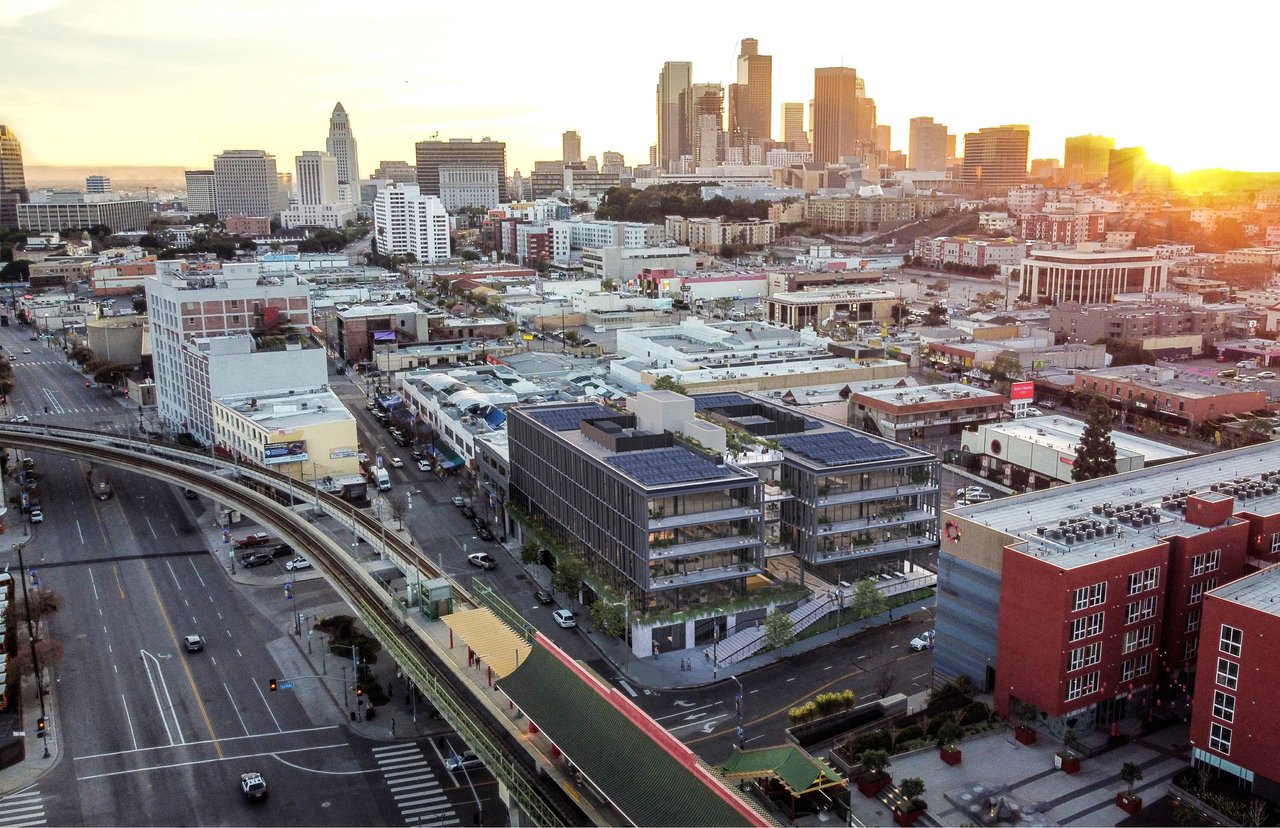

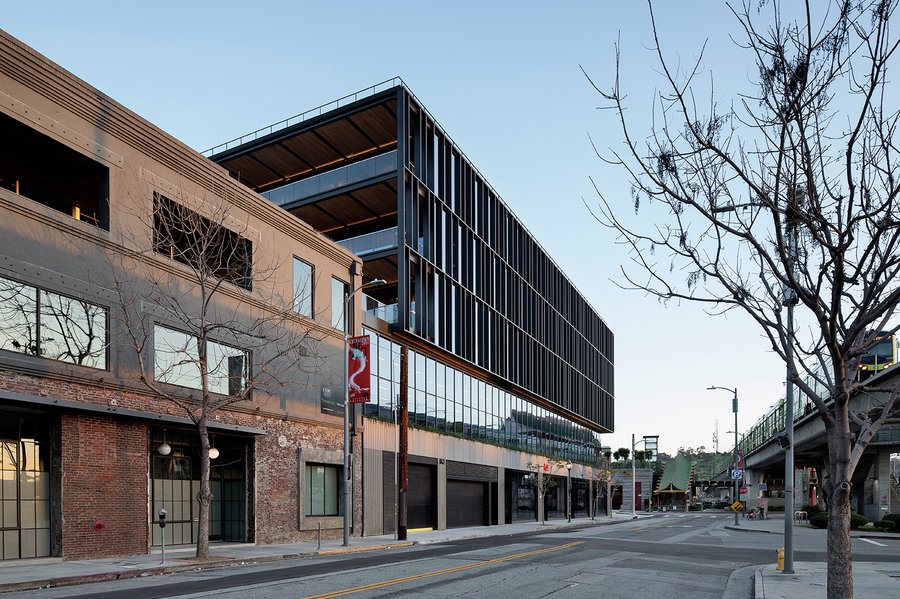

Located directly across from the Chinatown Metro stop, the building is ideally located to take advantage of the City’s transit network. The project will also offer EV charging stations and 230 bike stalls to support green transit options for tenants and visitors.

Ct7 03 college st med resolution 1280 0x0x4000x2588 q85

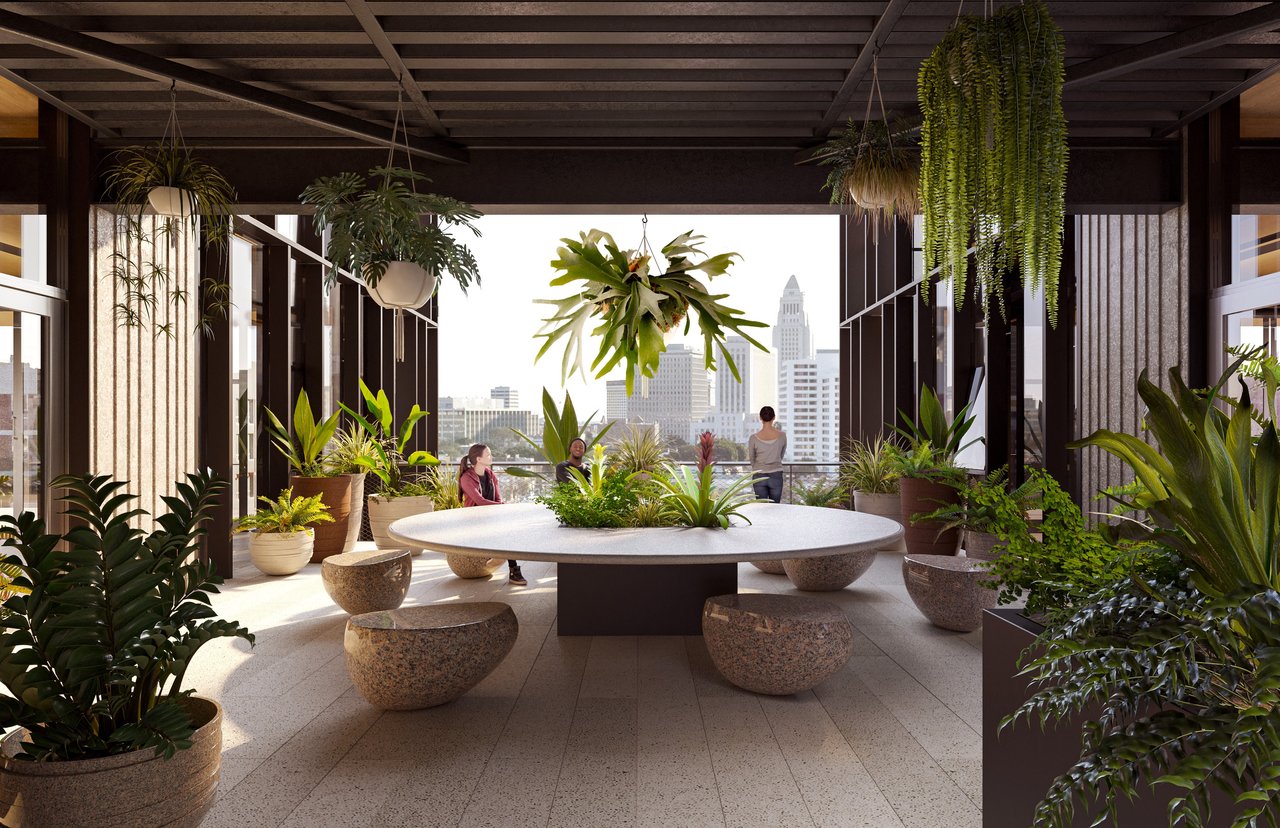

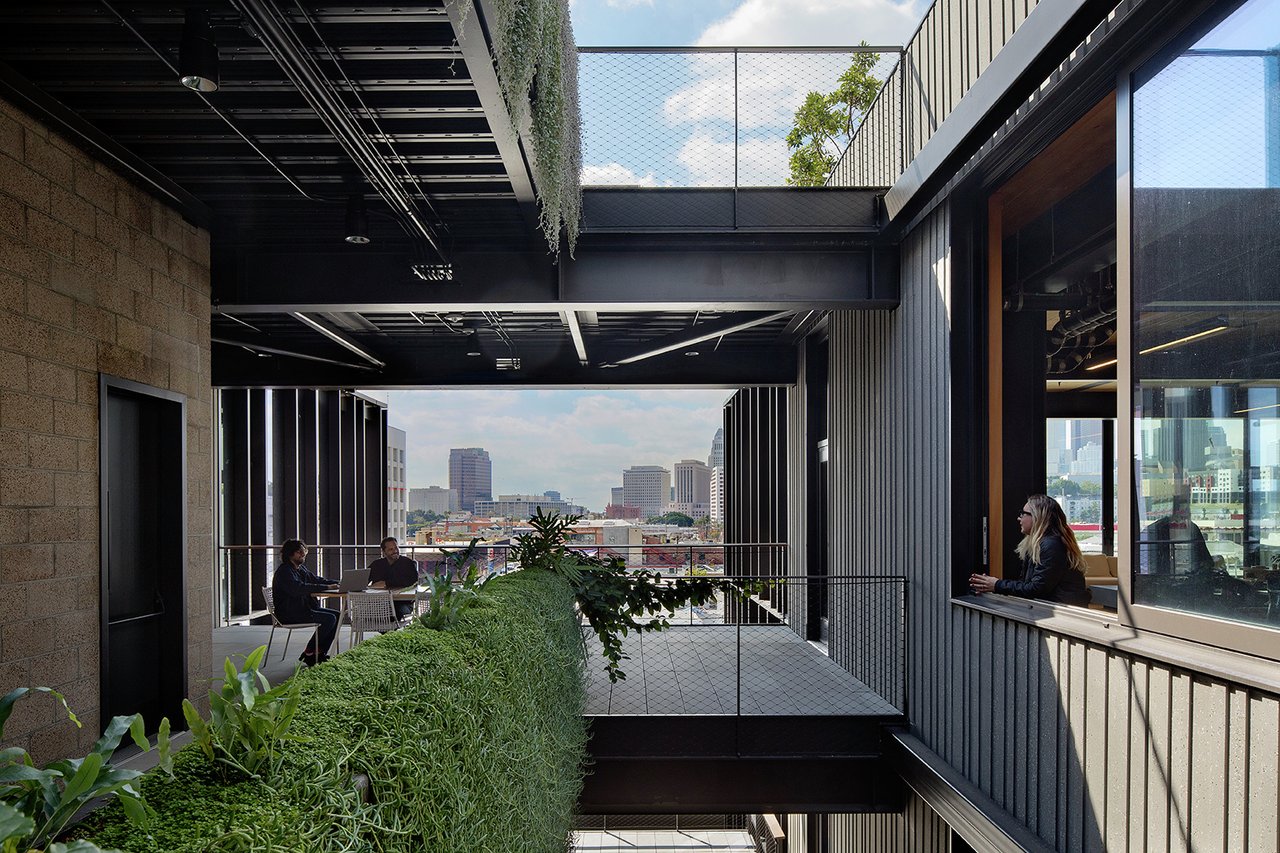

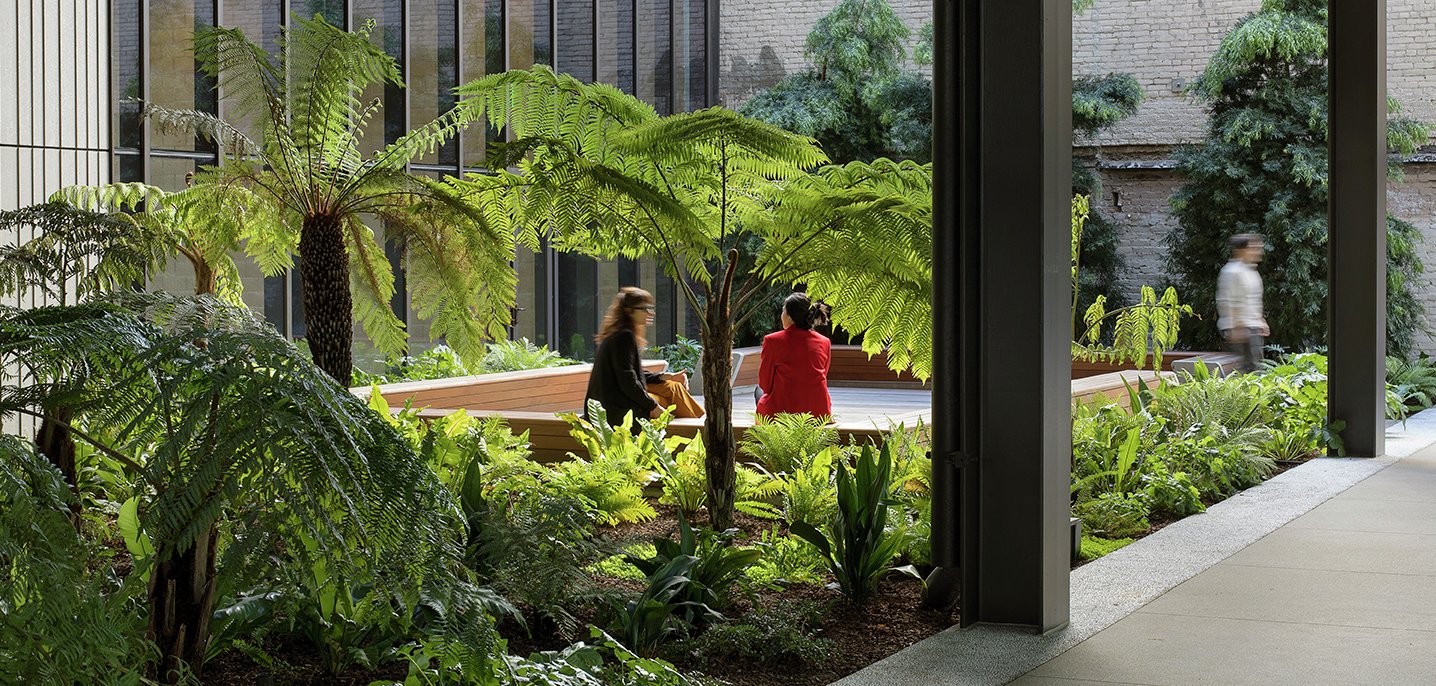

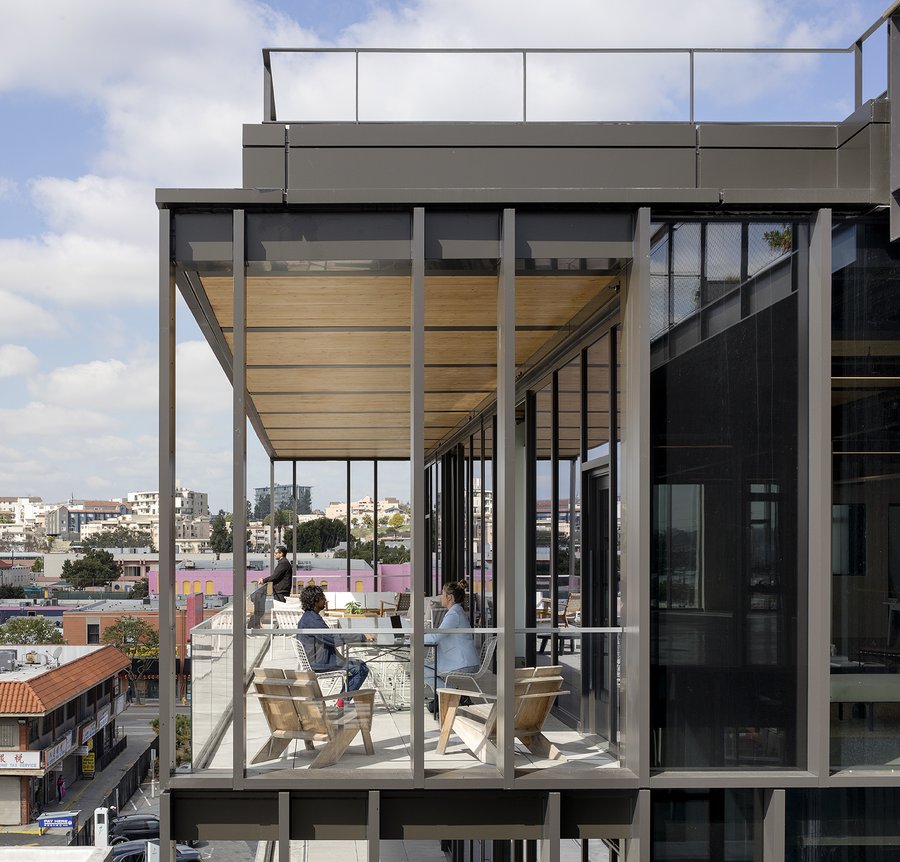

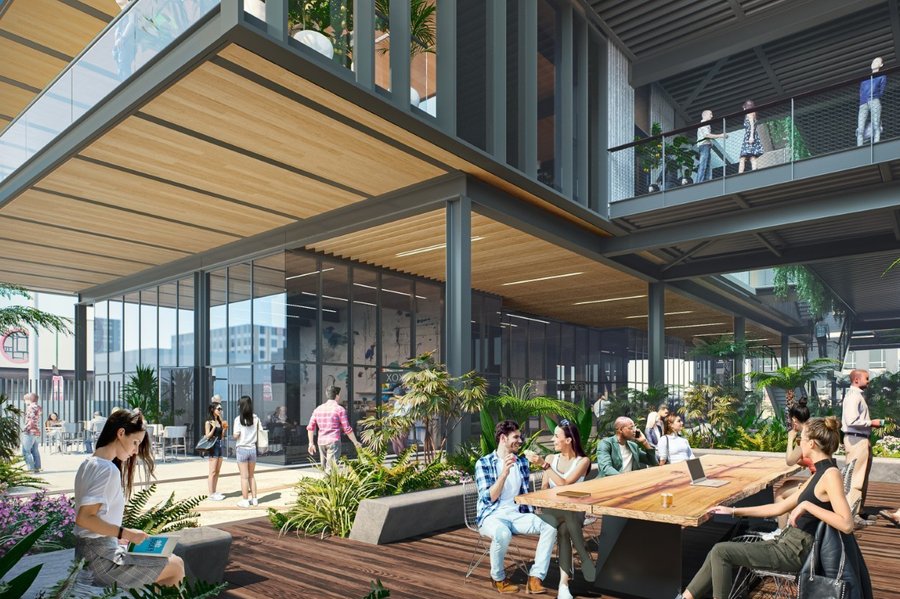

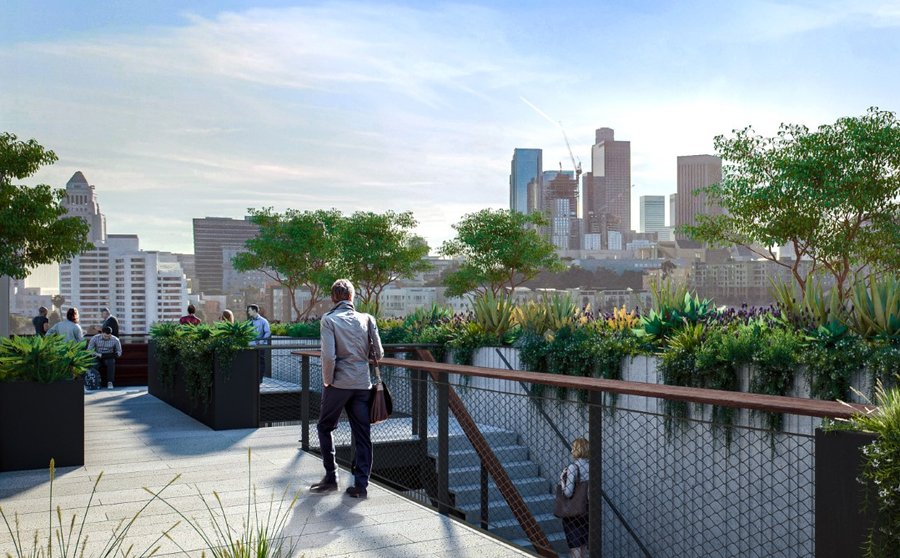

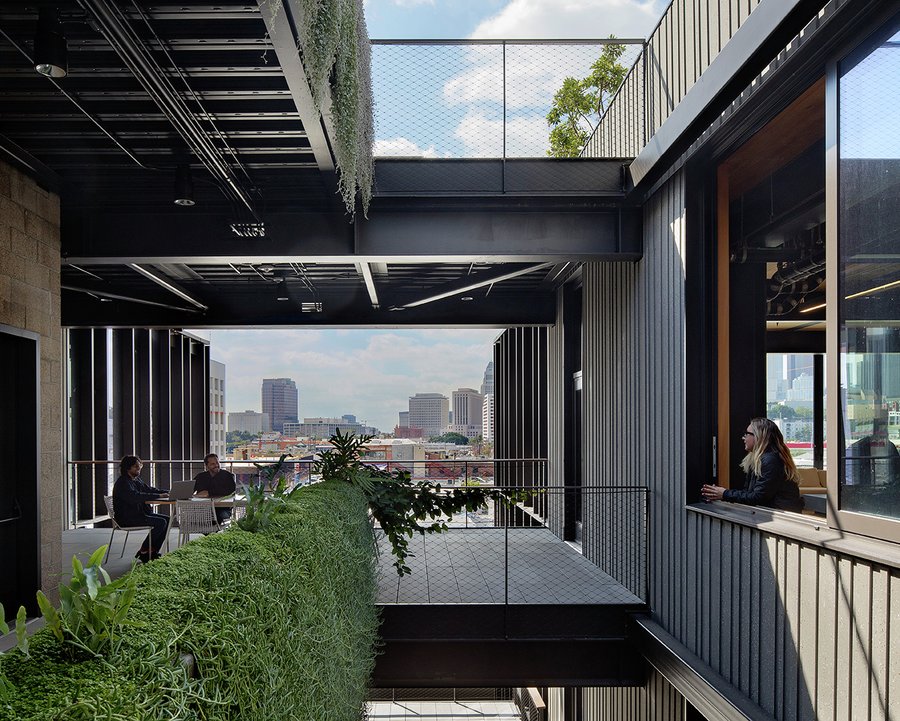

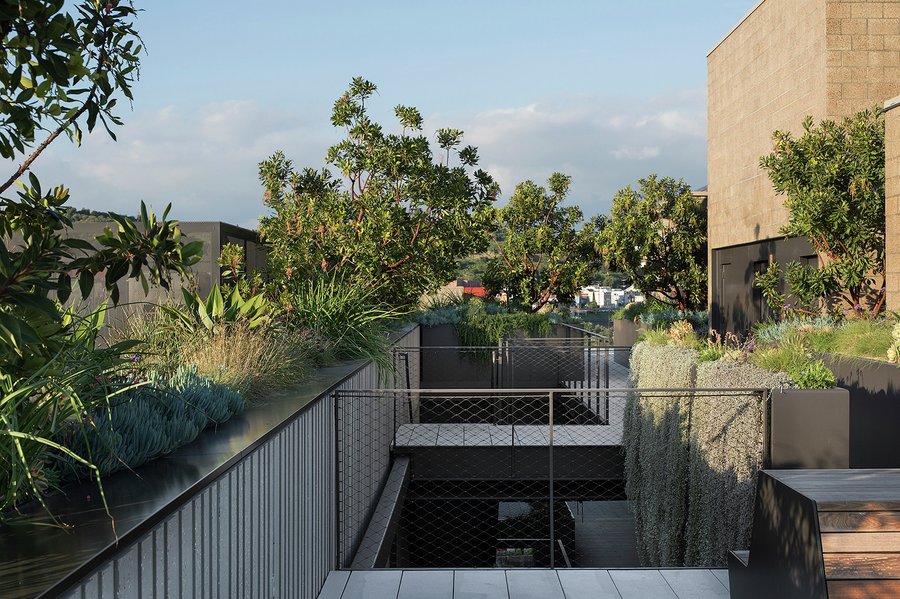

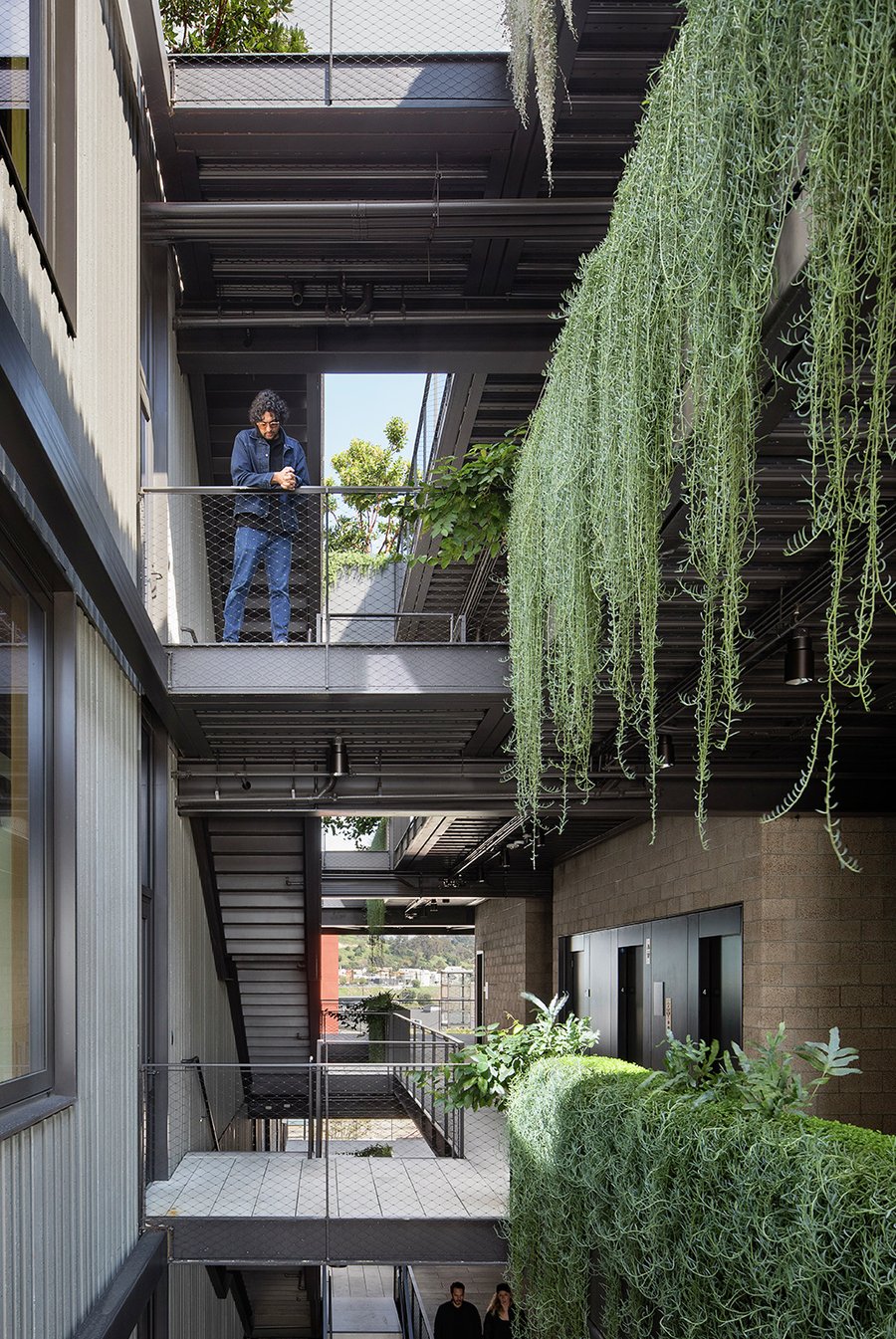

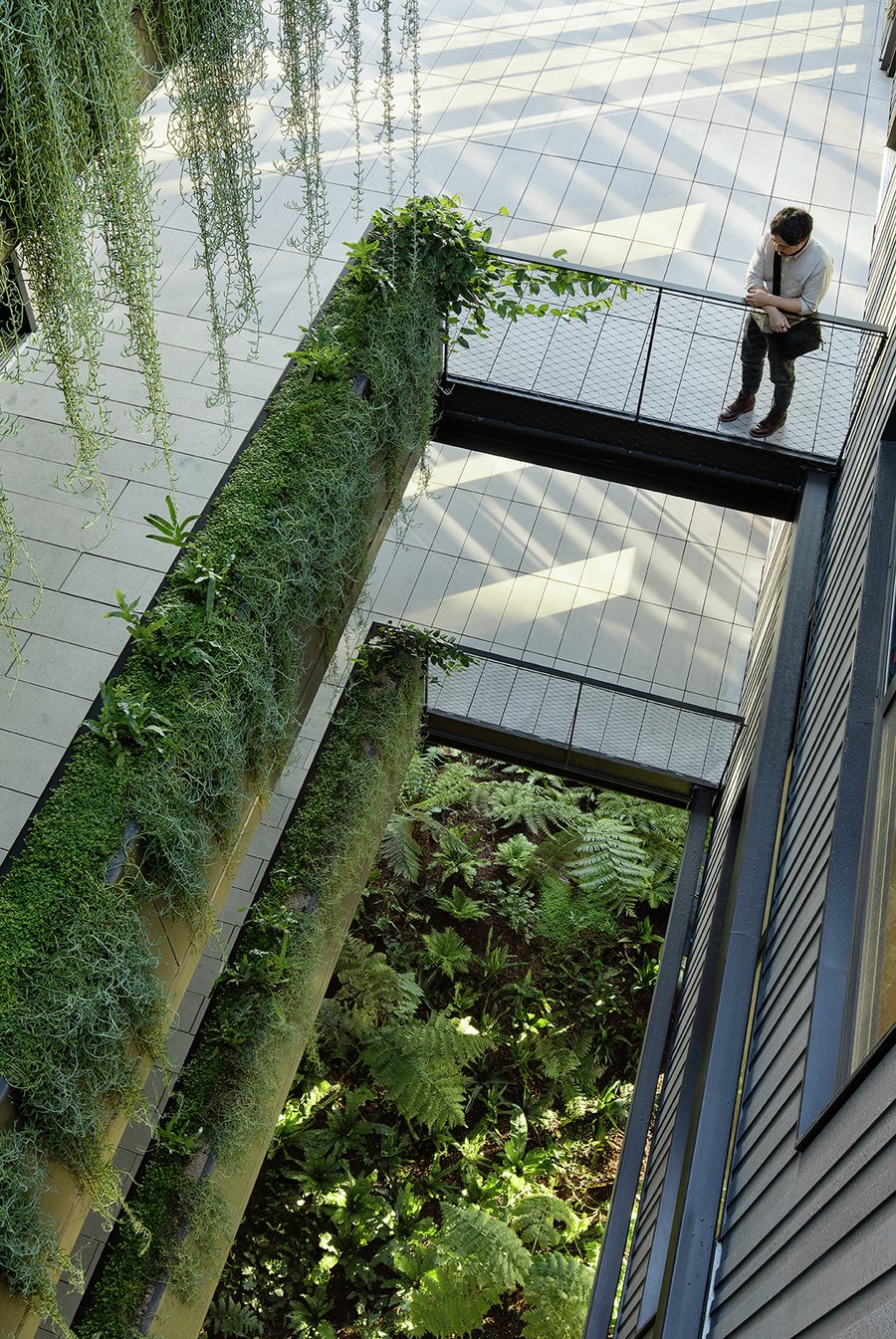

Working with Field Operations, the landscape design is intended to bridge the gap between indoor and outdoor, and fully embrace the Los Angeles climate by maximizing outdoor area. The open-air circulation spaces and courtyards, along with private balconies and a shared rooftop amenity deck, provide layers of outdoor connections to various users throughout the building.

Picture1 900 0x0x1919x1240 q85 bfff
Ct7 09 rooftop med resolution 900 0x178x4000x2410 q85

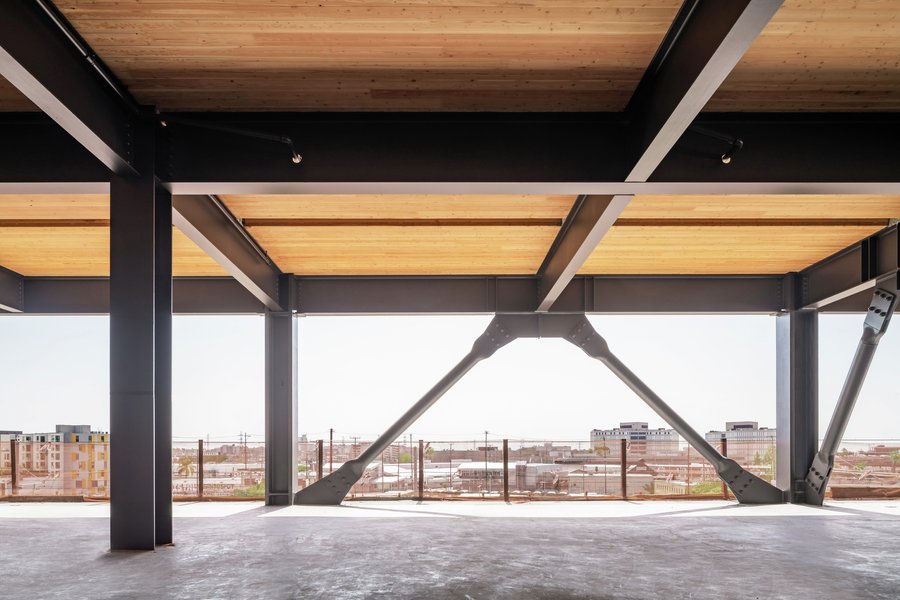

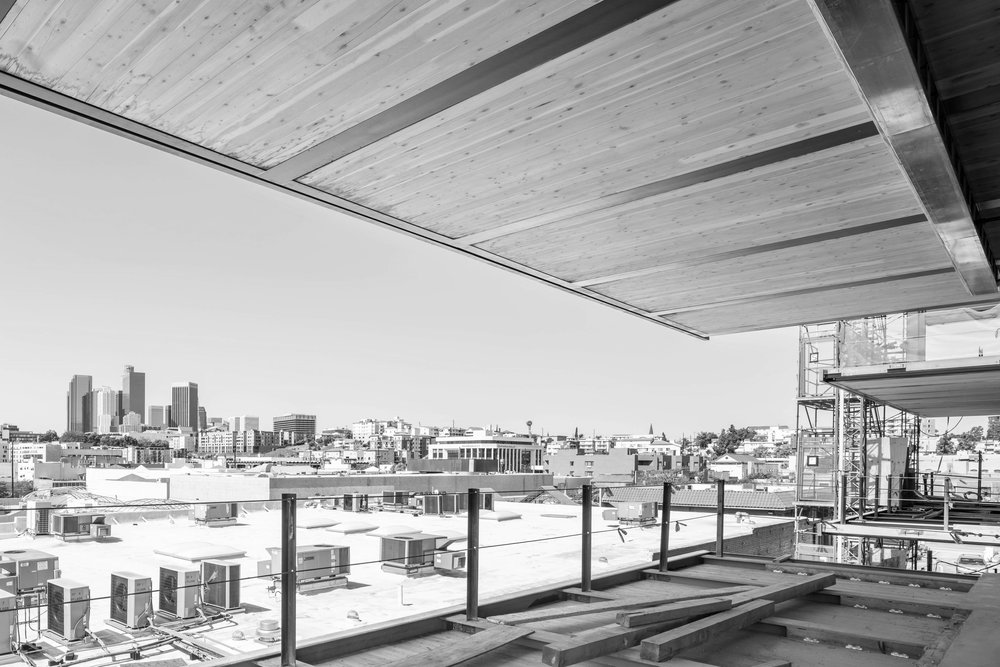

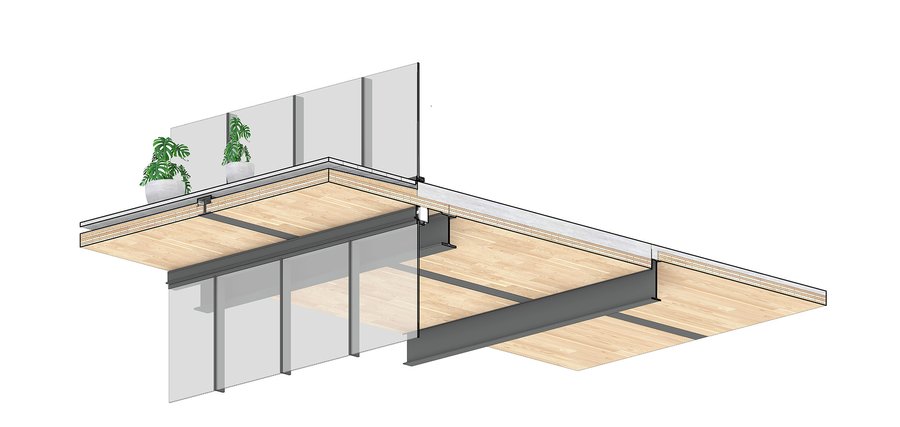

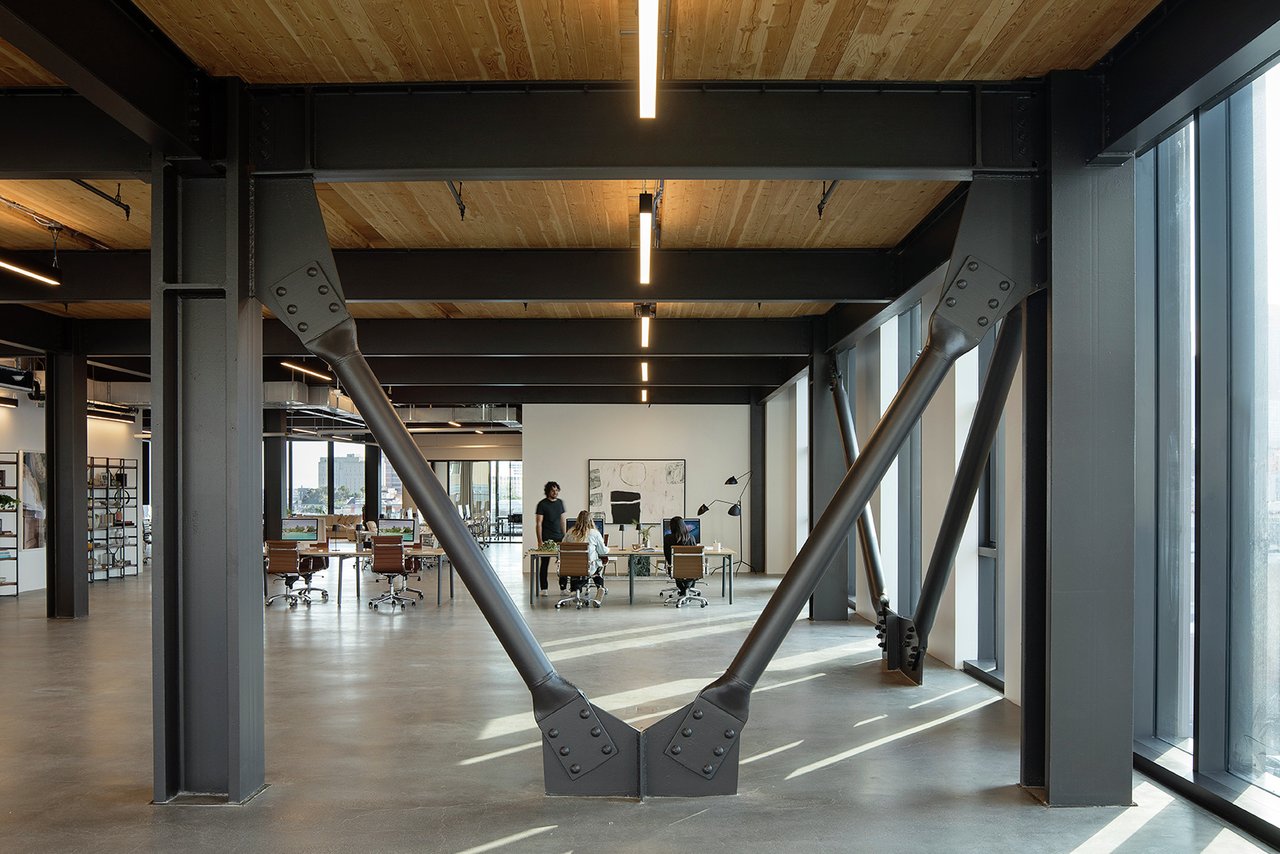

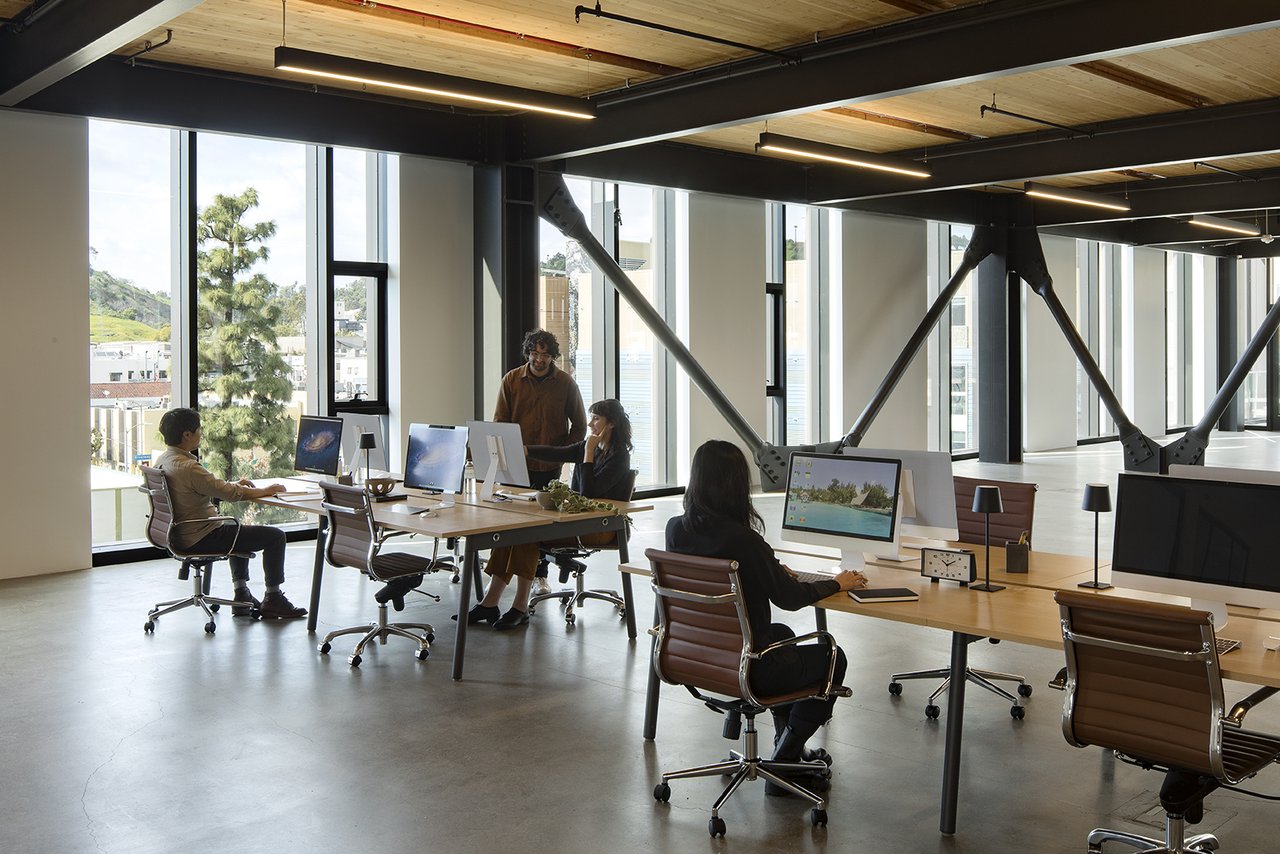

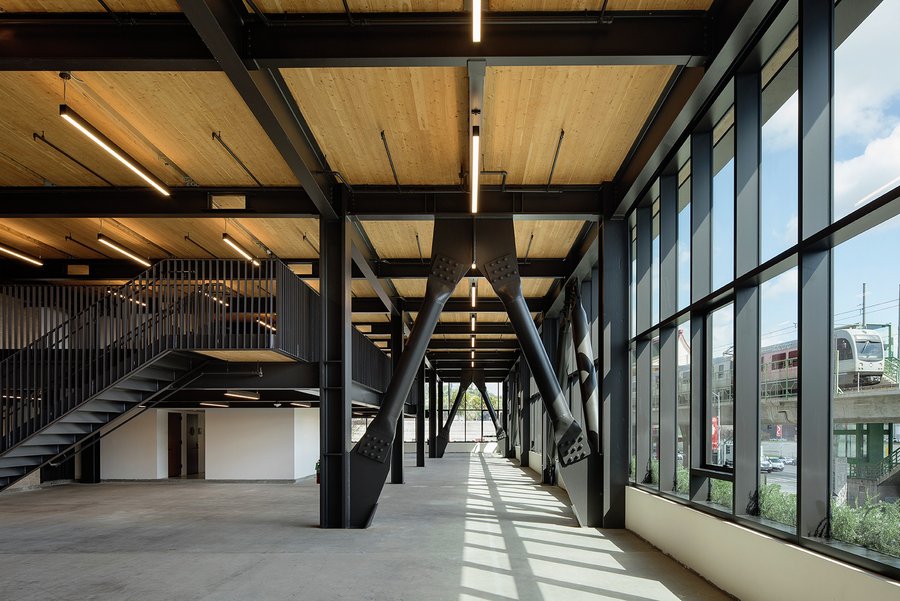

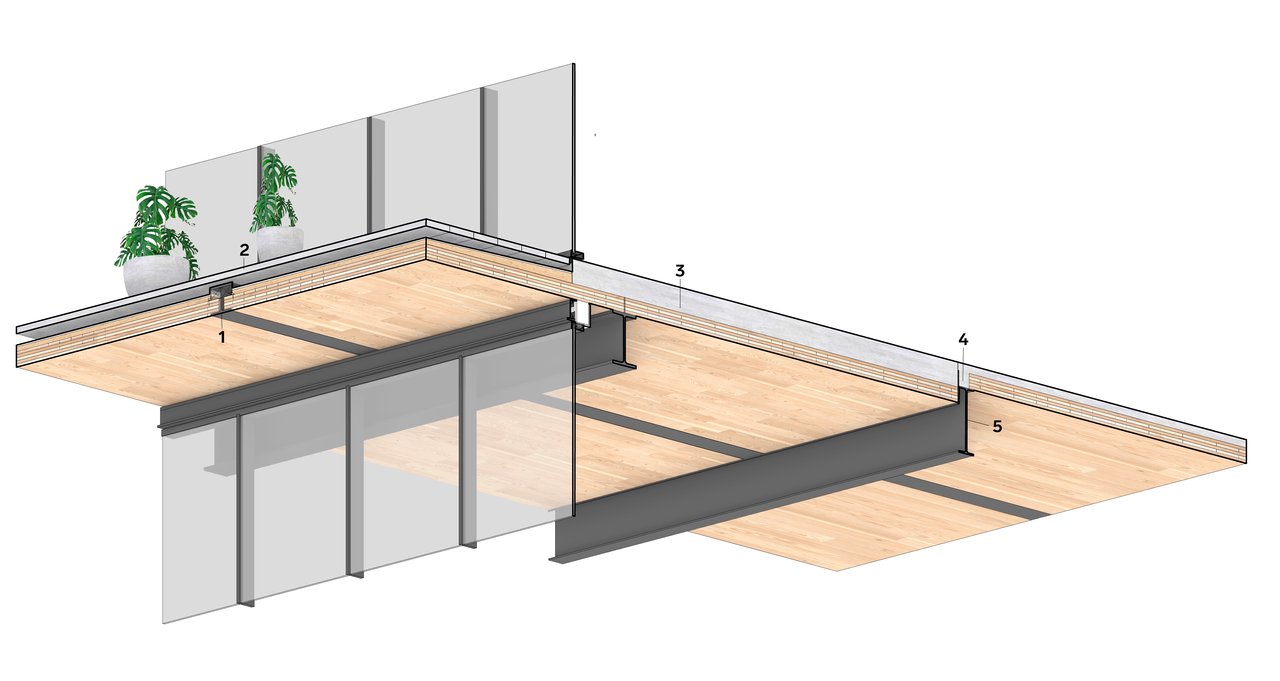

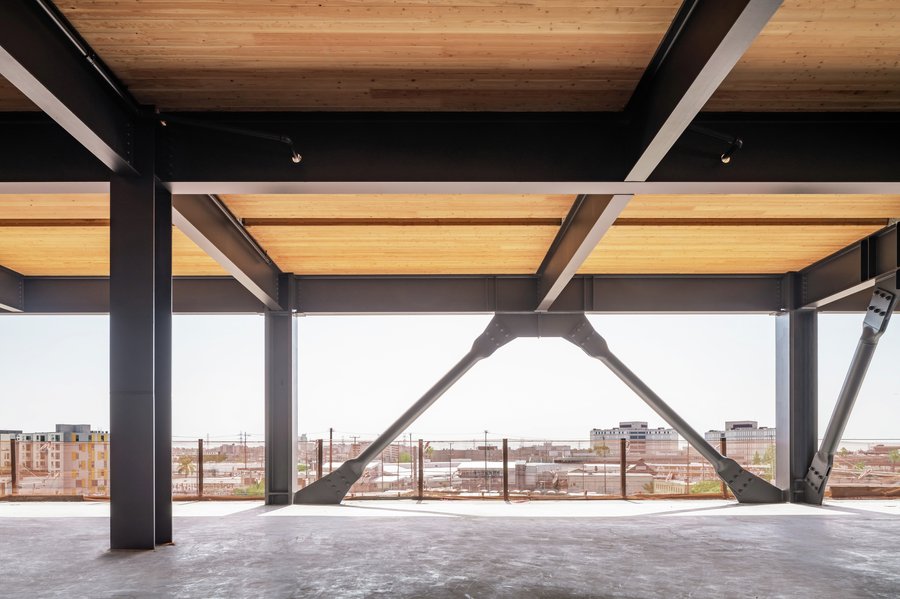

With the goal of pushing the boundaries of sustainable mass timber construction at scale, the building is one of the first major Cross-Laminated Timber (CLT) office buildings in Los Angeles. The hybrid structural system combines 3- and 5-ply CLT panels and concrete topping slab, with exposed steel columns and beams that account for the building’s gravity and seismic loads. Exposed timber panels cantilever over the balconies, and add a natural, warm aesthetic to the interior. Preliminary calculations show an estimated reduction of 1357 metric tons of carbon compared to traditional building methods, which is equivalent to keeping 287 cars off the road for a year.

 4a 1426 f v2 1280 0x0x1800x1279 q85
Structural diagram 900 0x0x3000x1941 q85
 4a 2059 f 1000 0x0x1798x1200 gray q85

3/4

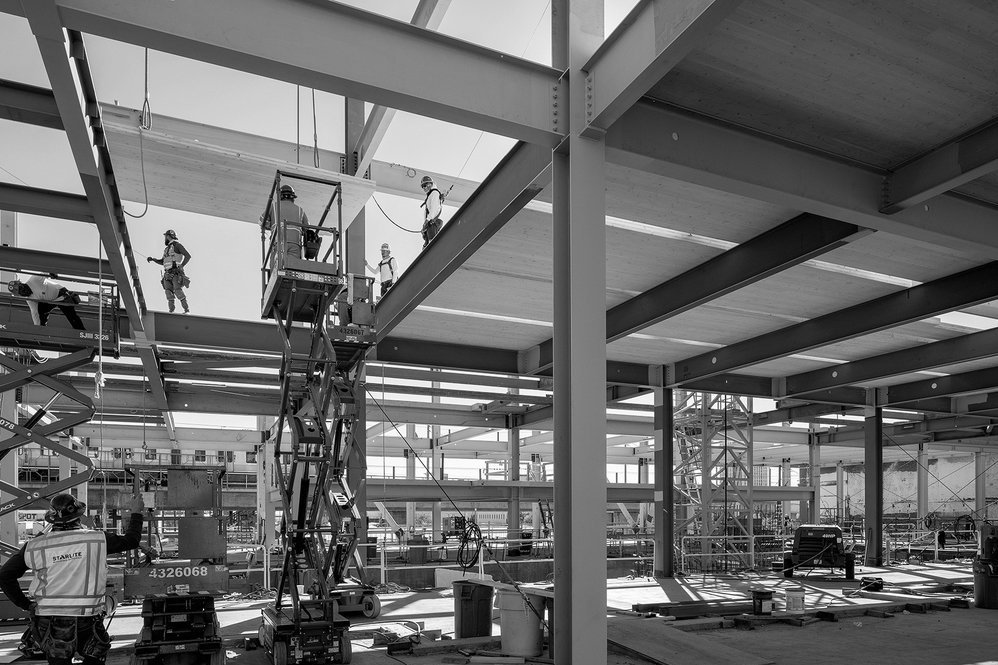

Overall, 82,000 sf of CLT will be installed

 4a 2144 f 1000 0x0x1798x1200 gray q85

4/4

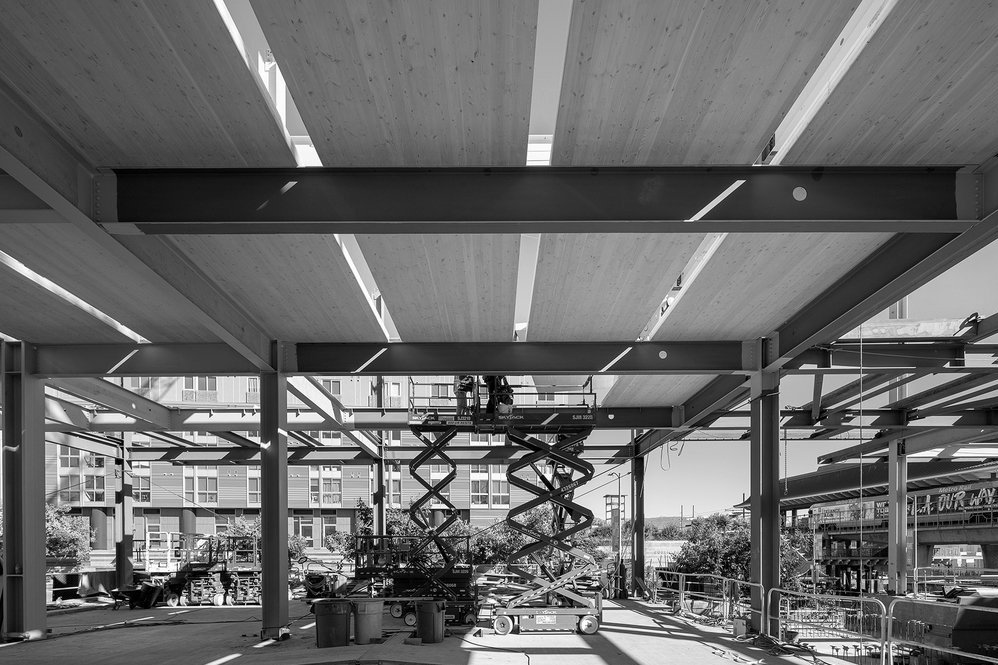

CLT panels are made from Spruce-pine-fir

 4a 1713 f v4 1000 0x0x1798x1200 gray q85

1/4

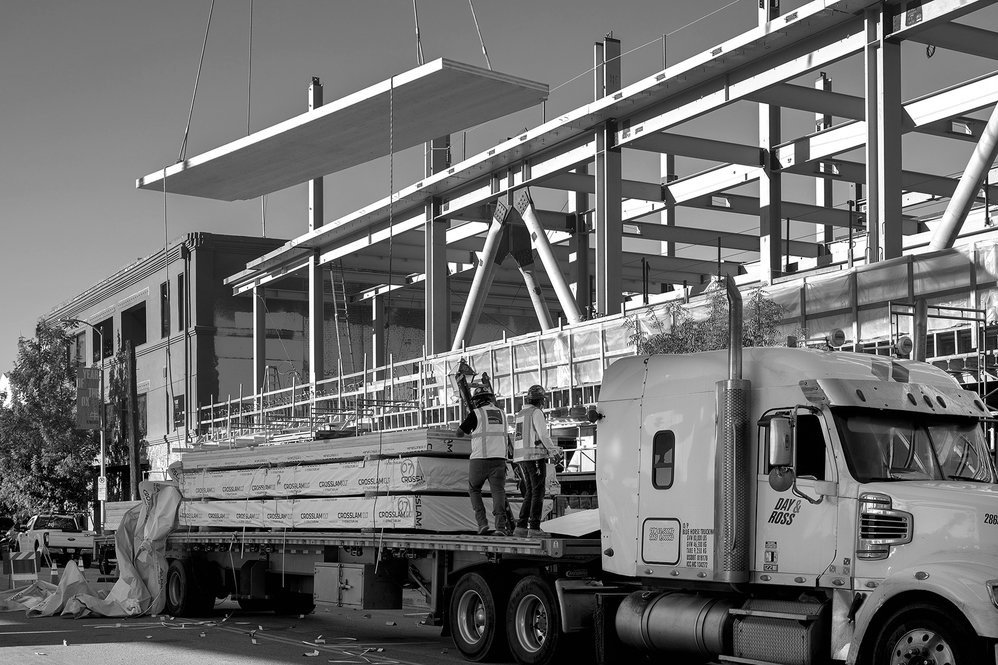

Structurlam CLT panels are delivered to the site

 4a 1846 f 1000 0x0x1798x1200 gray q85

2/4

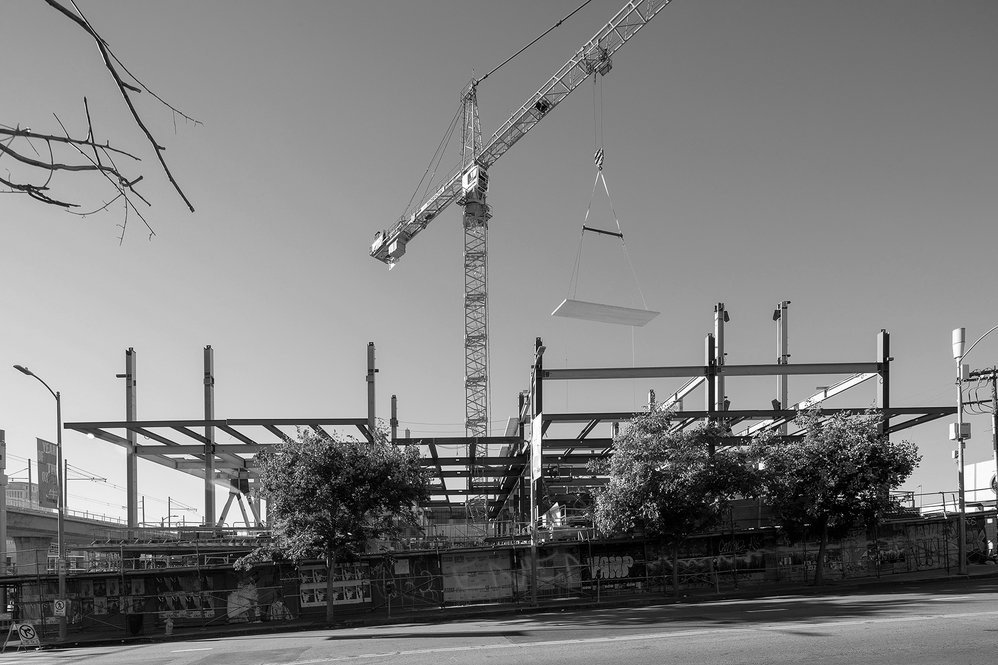

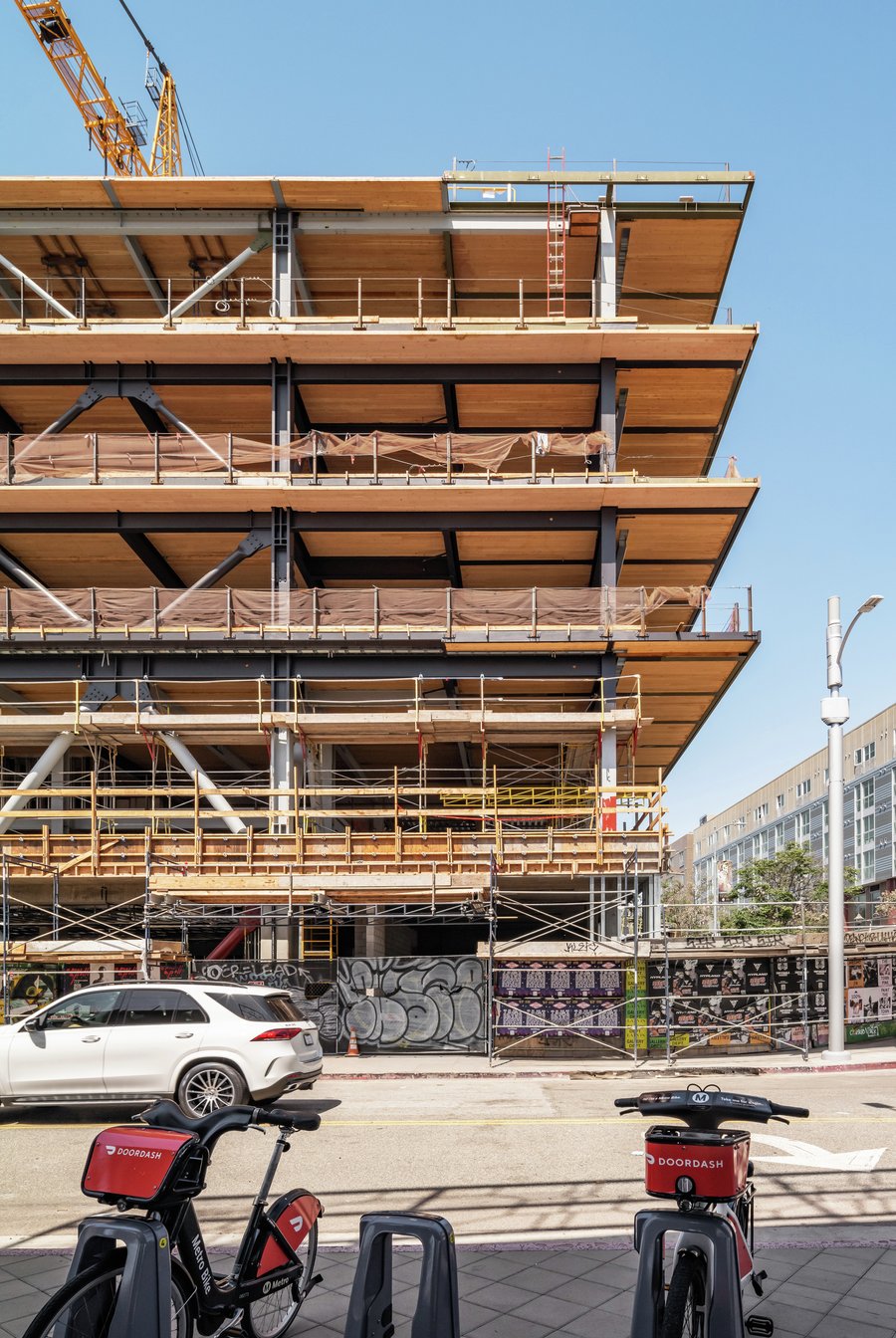

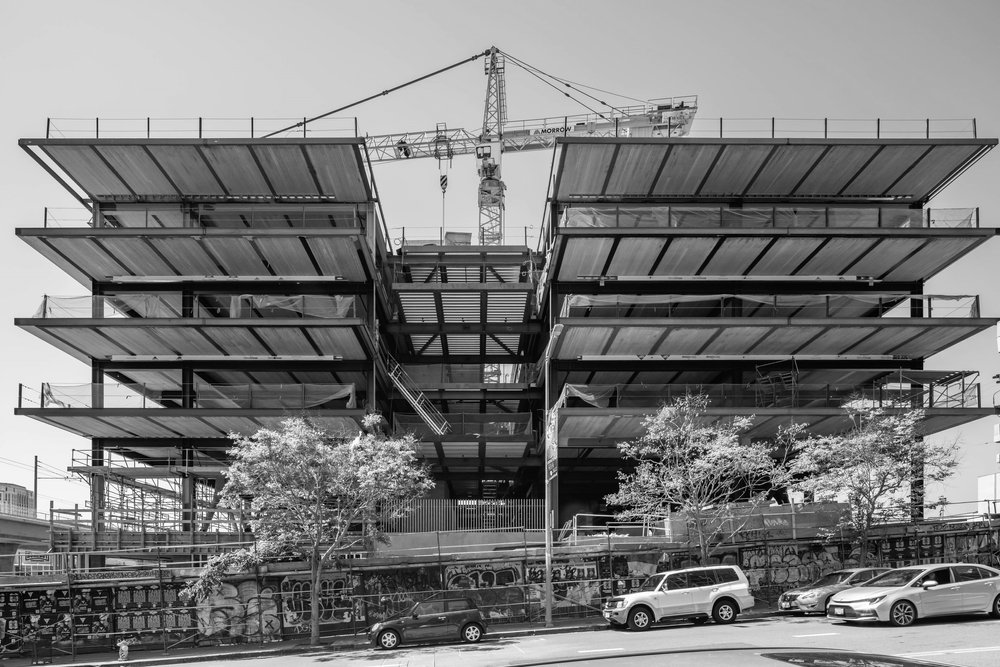

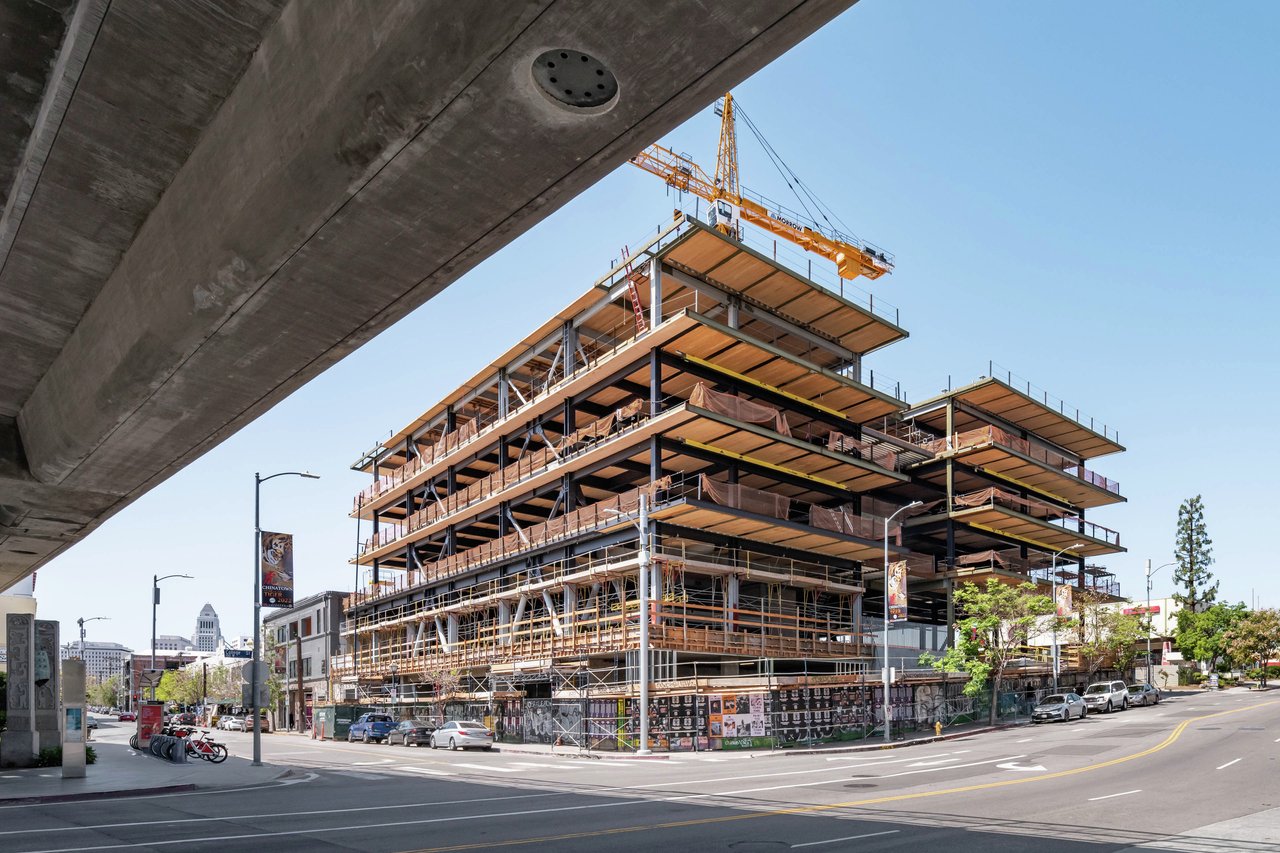

A tower crane is used to install the 364 CLT panels

 4a 2059 f 1000 0x0x1798x1200 gray q85

3/4

Overall, 82,000 sf of CLT will be installed

 4a 2144 f 1000 0x0x1798x1200 gray q85

4/4

CLT panels are made from Spruce-pine-fir

 4a 1713 f v4 1000 0x0x1798x1200 gray q85

1/4

Structurlam CLT panels are delivered to the site

 4a 1846 f 1000 0x0x1798x1200 gray q85

2/4

A tower crane is used to install the 364 CLT panels

Ct7 sustainability graphic 1280 0x231x3083x1908 q85

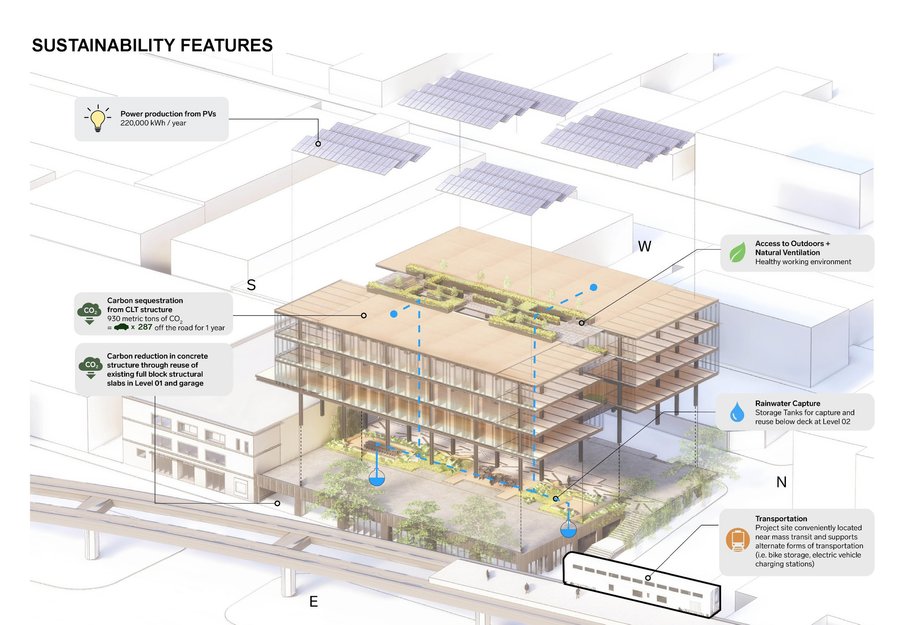

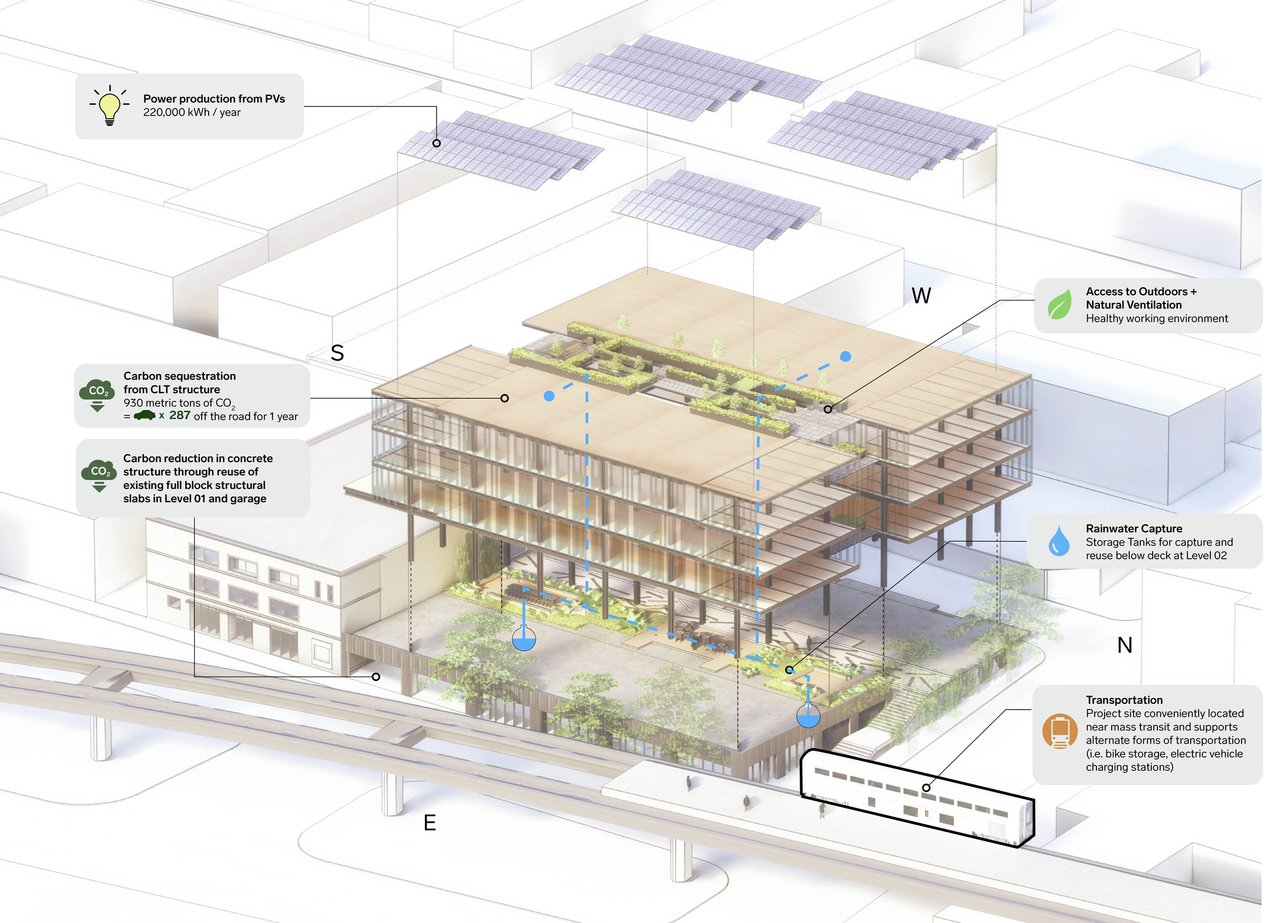

Sustainable Design Features
